NSN 5120-00-097-5528
Part Details | SPANNER WRENCH
5120-00-097-5528 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: 45B9931, 5120-00-097-5528, 00-097-5528, 5120000975528, 000975528
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-097-5528 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

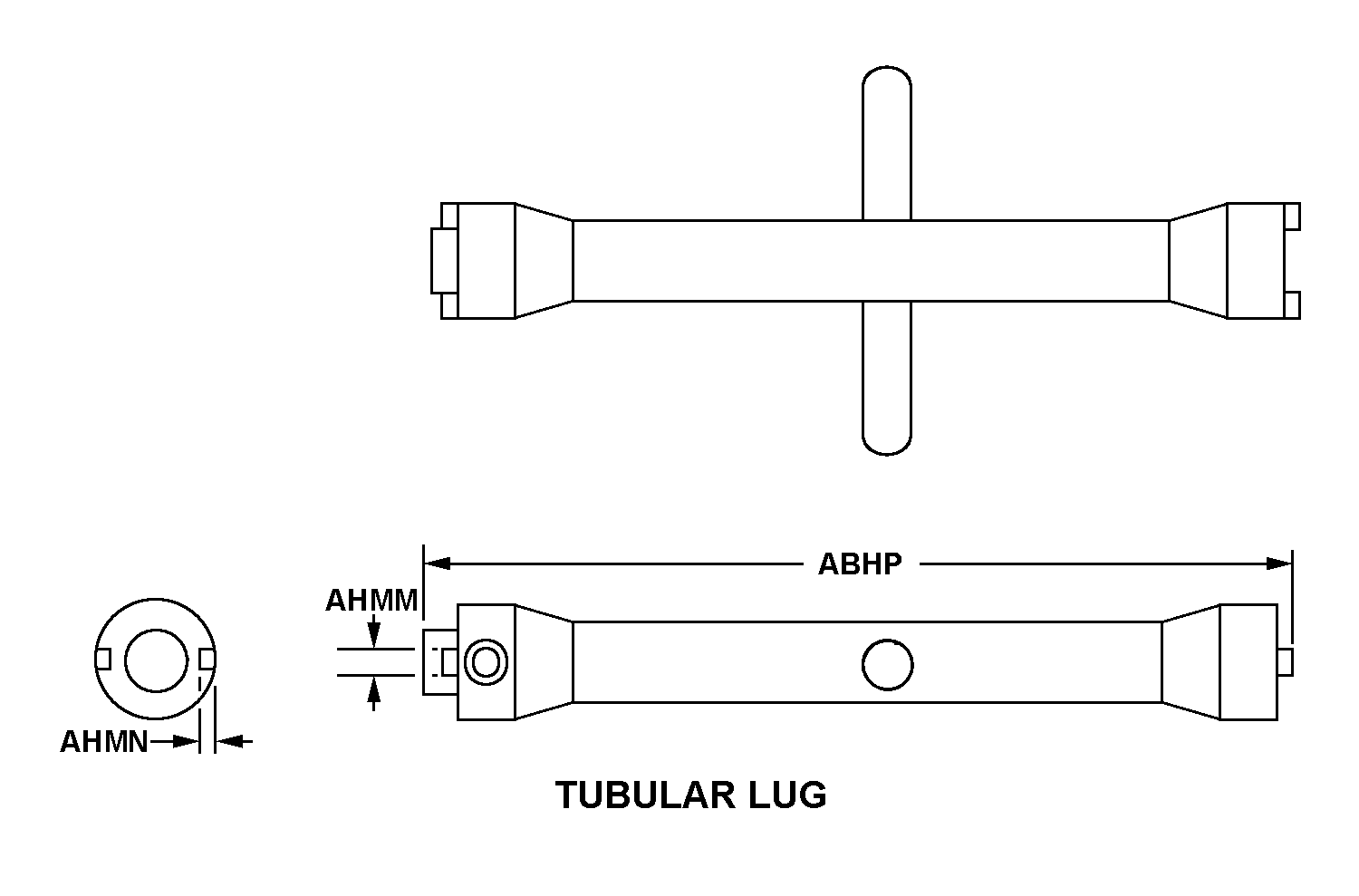

TUBULAR LUG
Cross Reference | NSN 5120-00-097-5528
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 45B9931 | 80049 | DEPARTMENT OF THE AIR FORCE |
Technical Data | NSN 5120-00-097-5528
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TUBULAR LUG |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| LUG WIDTH | 0.025 INCHES NOMINAL |
| SPECIAL FEATURES | 0.094 IN. DIA OF OPENING,SINGLE END;0.032 IN. NOM LG OF LUGS,SINGLE END;TANG LOCATED OPPOSITE END,0.120 IN. W,0.051 IN. THK,0.125 IN. LG |
