NSN 5120-00-097-4136
Part Details | BOX WRENCH
5120-00-097-4136 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Alternate Parts: 100250, 5080, 5080, 5080, 5120-00-097-4136, 00-097-4136, 5120000974136, 000974136
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-097-4136 | 03555 ( WRENCH, BOX ) |
REFERENCE DRAWINGS & PICTURES

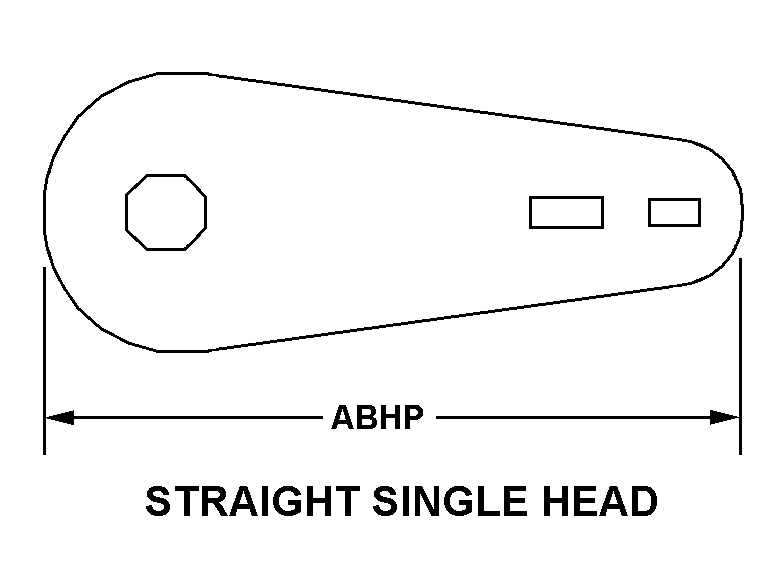

STRAIGHT SINGLE HEAD
Cross Reference | NSN 5120-00-097-4136
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100250 | 82523 | F W LANG CO |
| 5080 | 7M967 | GATTI INC |
| 5080 | 13614 | HUDSON OXYGEN THERAPY SALES CO |
| 5080 | 1SL40 | TELEFLEX MEDICAL INCORPORATEDDBA TELEFLEX MEDICAL |
Technical Data | NSN 5120-00-097-4136
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT SINGLE HEAD |
| OVERALL LENGTH | 4.937 INCHES NOMINAL |
| FEATURES PROVIDED | NONSPARKING |
| SPECIAL FEATURES | WRENCHING END HAS TWO 0.250 IN. W SLOTS; 0.781 IN. DIA HOLE IN HANDLE; CUBIC MEASURE: 0.001 CUBIC INCHES; UNPACKAGED UNIT WEIGHT: 0.150 LBS |
| FUNCTIONAL DESCRIPTION | USED TO OPEN AND CLOSE OXYGEN VALVES |
