NSN 5120-00-095-3126
Part Details | SPANNER WRENCH
5120-00-095-3126 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.
Alternate Parts: PWA5072, 5120-00-095-3126, 00-095-3126, 5120000953126, 000953126
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JAN 01, 1963 | 00-095-3126 | 03476 ( WRENCH, SPANNER ) |
REFERENCE DRAWINGS & PICTURES

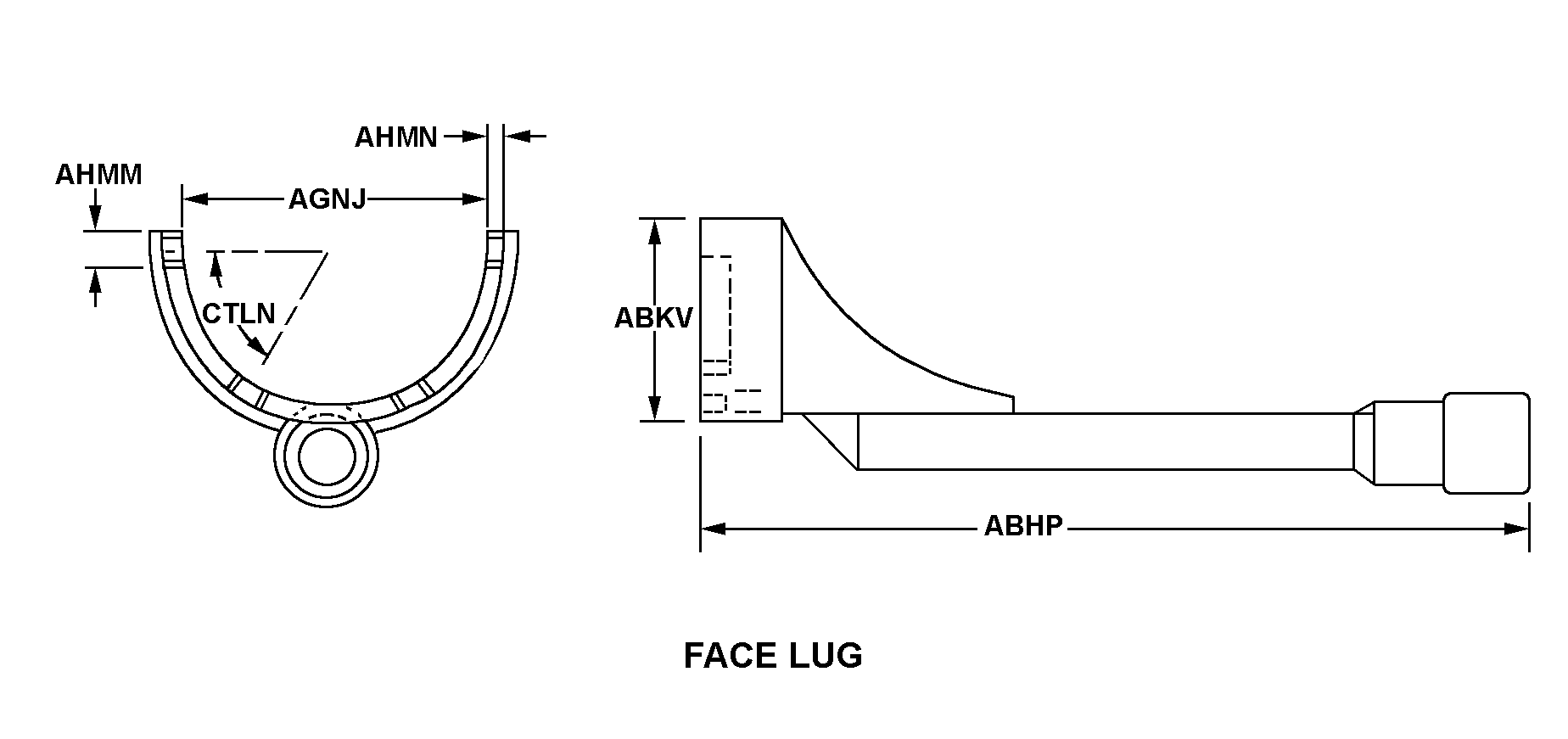

FACE LUG
Cross Reference | NSN 5120-00-095-3126
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA5072 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
Technical Data | NSN 5120-00-095-3126
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FACE LUG |
| OVERALL LENGTH | 17.500 INCHES NOMINAL |
| OPENING DIAMETER | 2.438 INCHES NOMINAL |
| LUG WIDTH | 0.344 INCHES NOMINAL |
| LUG THICKNESS | 0.513 INCHES NOMINAL |
| ANGLE BETWEEN LUGS | 60.0 DEGREES NOMINAL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
| SPECIAL FEATURES | TEE-HANDLED,1/2IN/DIA |
| FUNCTIONAL DESCRIPTION | USED ON A-803,MODEL A-1830 |
