NSN 5120-00-006-9503
Part Details | TORQUE WRENCH ADAPTER
5120-00-006-9503 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.
Alternate Parts: OP42, OP42, 22708, 5120-00-006-9503, 00-006-9503, 5120000069503, 000069503
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | JUN 30, 1972 | 00-006-9503 | 60023 ( ADAPTER, TORQUE WRENCH ) |
REFERENCE DRAWINGS & PICTURES

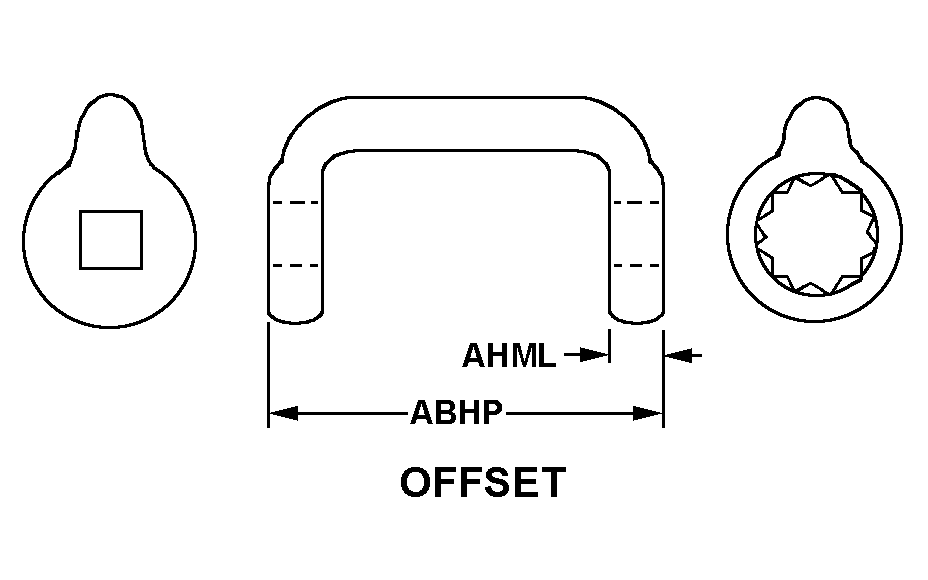

OFFSET
Cross Reference | NSN 5120-00-006-9503
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| OP42 | 03705 | APEX TOOL GROUP, LLC |
| OP42 | 30106 | UTICA TOOL CO INC |
| 22708 | 30106 | UTICA TOOL CO INC |
Technical Data | NSN 5120-00-006-9503
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A OFFSET |
| TORQUE CAPACITY | 20.0 INCH-POUNDS MAXIMUM |
| END ITEM IDENTIFICATION | UTICA SIZE A TORQUE WRENCH HANDLES |
