NSN 4940-01-357-7962
Part Details | TRAILER MOUNTED PRESSURE JET STEAM CLEANER
4940-01-357-7962 A unit designed to remove surface deposits of foreign materials by means of a forced stream of steam and detergent or water. Excludes CLEANER, STEAM, PRESSURE JET; DISHWASHING MACHINE, COMMERCIAL; DISHWASHING MACHINE, HOUSEHOLD; and CLEANER, PRESSURE, SOLVENT-WATER
Alternate Parts: 53000GHOT, 5/3000GHOT, 4940-01-357-7962, 01-357-7962, 4940013577962, 013577962
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | APR 30, 1992 | 01-357-7962 | 19228 ( CLEANER, STEAM, PRESSURE JET, TRAILER MOUNTED ) |
REFERENCE DRAWINGS & PICTURES

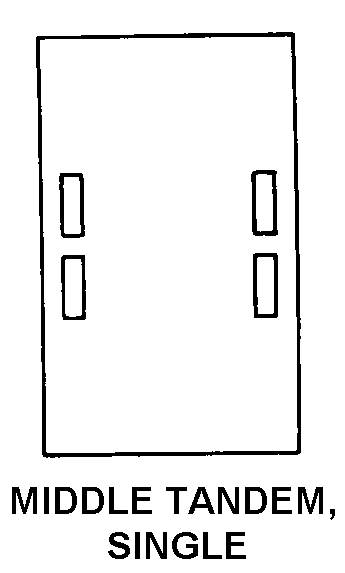

MIDDLE TANDEM, SINGLE
Cross Reference | NSN 4940-01-357-7962
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5/3000GHOT | 64030 | HYDRO ENGINEERING, INC |
Technical Data | NSN 4940-01-357-7962
| Characteristic | Specifications |
|---|---|
| STEAM GENERATOR | INCLUDED |
| OUTSIDE STEAM SOURCE | NOT REQUIRED |
| OUTSIDE WATER SOURCE | NOT REQUIRED |
| MAXIMUM CLEANING SOLUTION JET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| CLEANING SOLUTION MAXIMUM DISCHARGE RATE | 300.0 GALLONS PER HOUR |
| MAXIMUM LIQUID JET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| MAXIMUM LIQUID DISCHARGE RATE | 300.0 GALLONS PER HOUR |
| STORAGE TANK QUANTITY | 2 |
| STORED MATERIAL | L ANY ACCEPTABLE AND H ANY ACCEPTABLE |
| CAPACITY | 525.0 GALLONS AND 55.0 GALLONS |
| MOUNTING TYPE | V$U |
| WHEEL QUANTITY | 4 |
| TIRE TYPE | D ANY ACCEPTABLE |
| TIRE SIZE | 6.70-15 |
| WHEEL DIAMETER | 15.000 INCHES NOMINAL |
| WHEEL ARRANGEMENT STYLE | MIDDLE TANDEM, SINGLE |
| RETRACTABLE SUPPORT FEATURE | NOT INCLUDED |
| SPECIAL FEATURES | GASOLINE ENGINE HP: 18; STARTER: ELECTRIC STD; FUEL TANK CAP.: 10 GAL; ELECTRICAL CONTROL:2000 W,115 VAC,BELT DRIVEN GENERATOR SUPPLIES BURNER AND AUX 115 VAC OUTLET ON AN ENGINE SYSTEMS; FRAME: STRUCTURAL STEEL FRAME COMPRISED OF WELDED 3 IN. AND 4 IN. CHANNEL; BUILT IN WAND HOLSTERS; HAS A LOCKABLE FULL ACCESS DOOR AND PROTECTS PUMPS,ENGINE,BATTERT,GENERATOR,AND CONTROLS; HEAVY DUTY LEAF SPRING SUSPENSION; 200 FT WIRE-BRAID HOSE WITH QUICK DISCONNECT FITTINGS; DISCHARGE SOAP INJECTION USING PRECISION METERING VALVE CONTROLLED AT THE SPRAY WAND; AXLE: 2; HITCH COUPLER BALL SIZE 2.000 IN.; DIM. 181 IN. LG; 92 IN. W; 76 IN. H; WEIGHT: 2200/6900 LBS |
| END ITEM IDENTIFICATION | MULTI-APPLICATION |
