NSN 4730-00-059-5053
Part Details | TUBE FITTING INSERT
4730-00-059-5053 A flanged cylindrical metallic or nonmetallic item designed to be inserted into soft plastic tubing to accommodate the sleeve of compression type tube fittings.
Alternate Parts: 4T23U1B, 4T23U1B, 4T23U1B, 4730-00-059-5053, 00-059-5053, 4730000595053, 000595053
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUN 08, 1967 | 00-059-5053 | 32691 ( INSERT, TUBE FITTING ) |

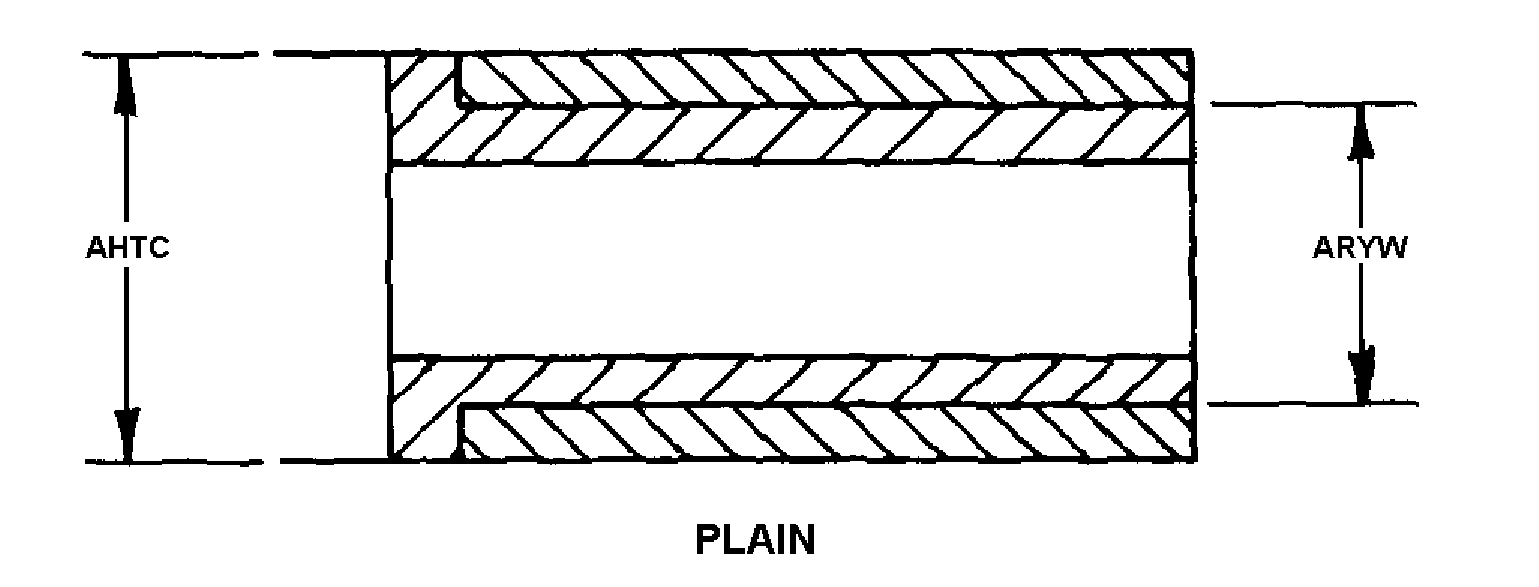

REFERENCE DRAWINGS & PICTURES
PLAIN
Cross Reference | NSN 4730-00-059-5053
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4T23U1B | 98441 | PARKER-HANNIFIN CORPORATIONDBA STRATOFLEX PRODUCTS DIVISION |
| 4T23U1B | 30780 | PARKER-HANNIFIN CORPORATIONDBA TUBE FITTINGS DIVISION |
| 4T23U1B | 45681 | PARKER-HANNIFIN CORPORATIONDIV CORPORATE HEADQUARTERS |
Technical Data | NSN 4730-00-059-5053
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| TUBE INSIDE DIAMETER FOR WHICH DESIGNED | 0.172 INCHES NOMINAL |
| STYLE DESIGNATOR | PLAIN |
| FLANGE OUTSIDE DIAMETER | 0.232 INCHES NOMINAL |
| SLEEVE OUTSIDE DIAMETER | 0.170 INCHES NOMINAL |
