NSN 4730-00-054-6326
Part Details | PIPE BUSHING
4730-00-054-6326 A fitting with pipe threads having a female connection inside of a male connection, used in conjunction with another fitting, to connect in the same line, two pipes of different sizes.
Alternate Parts: WWP471, 4730-00-054-6326, 00-054-6326, 4730000546326, 000546326
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-054-6326 | 03779 ( BUSHING, PIPE ) |
REFERENCE DRAWINGS & PICTURES

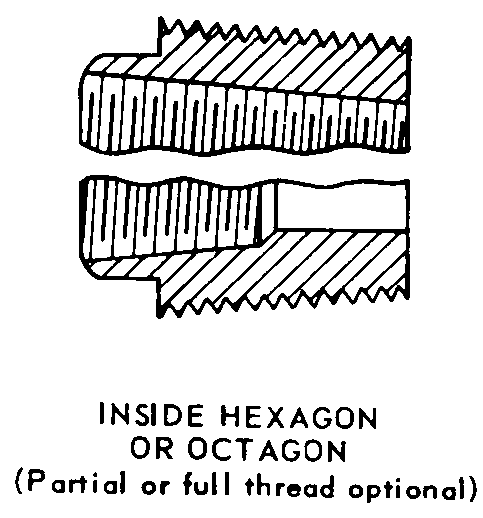

INSIDE HEXAGON OR OCTAGON
Cross Reference | NSN 4730-00-054-6326
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP471 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4730-00-054-6326
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON AND STEEL |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | INSIDE HEXAGON OR OCTAGON |
| EXTERNAL THREAD SIZE | 6-8 |
| EXTERNAL SCREW THREAD SERIES DESIGNATOR | NPT |
| EXTERNAL THREAD DIRECTION | RIGHT-HAND |
| INTERNAL THREAD SIZE | 3-8 |
| INTERNAL SCREW THREAD SERIES DESIGNATOR | NPT |
| INTERNAL THREAD DIRECTION | RIGHT-HAND |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND C STYLE |
