NSN 4420-01-316-0189
Part Details | INDUSTRIAL FLUID COOLER BONNET
4420-01-316-0189 An item designed to be attached to a SHELL, FLUID COOLER, INDUSTRIAL to provide direction of flow with minimum impact on tube ends and TUBE SHEET, FLUID COOLER, INDUSTRIAL and provide access to tubes without removal of piping.
Alternate Parts: 317321520701, 3-173-2-15-207-01, 317321520701, 3-173-2-15-207-01, 4420-01-316-0189, 01-316-0189, 4420013160189, 013160189
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | MAR 01, 1990 | 01-316-0189 | 37495 ( BONNET, FLUID COOLER, INDUSTRIAL ) |
REFERENCE DRAWINGS & PICTURES

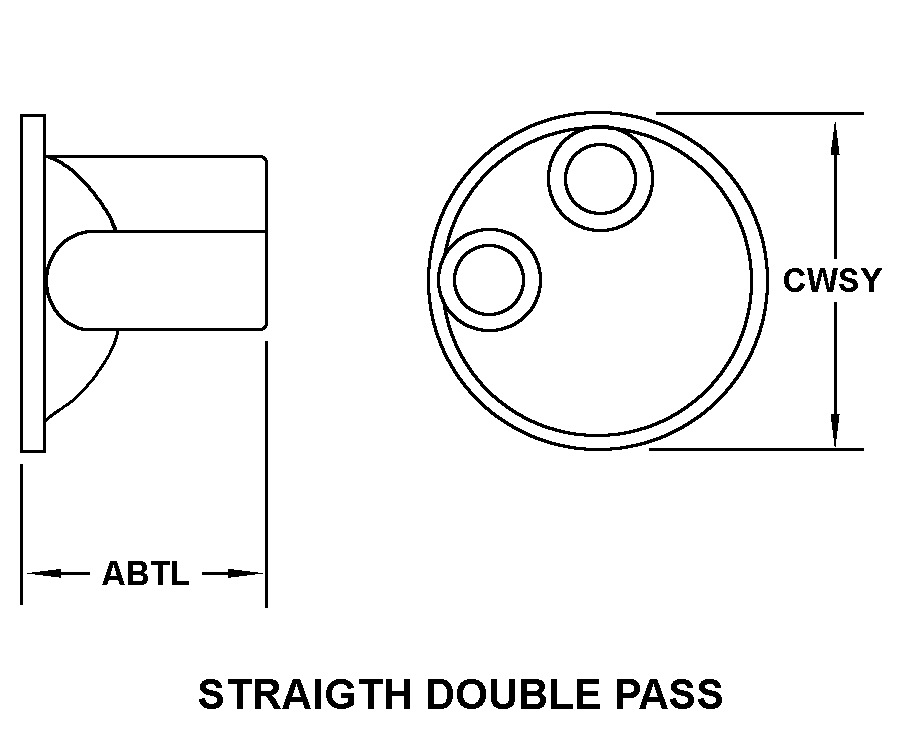

STRAIGHT DOUBLE PASS
Cross Reference | NSN 4420-01-316-0189
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-173-2-15-207-01 | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 3-173-2-15-207-01 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
Technical Data | NSN 4420-01-316-0189
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT DOUBLE PASS |
| DIAMETER | 15.000 INCHES NOMINAL |
