Part Details | INDUSTRIAL FLUID COOLER BONNET
4420-01-278-3668 An item designed to be attached to a SHELL, FLUID COOLER, INDUSTRIAL to provide direction of flow with minimum impact on tube ends and TUBE SHEET, FLUID COOLER, INDUSTRIAL and provide access to tubes without removal of piping.
Alternate Parts: 312420421501, 3-124-2-04-215-01, 312420421501, 3-124-2-04-215-01, 4420-01-278-3668, 01-278-3668, 4420012783668, 012783668
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | MAY 04, 1988 | 01-278-3668 | 37495 ( BONNET, FLUID COOLER, INDUSTRIAL ) |

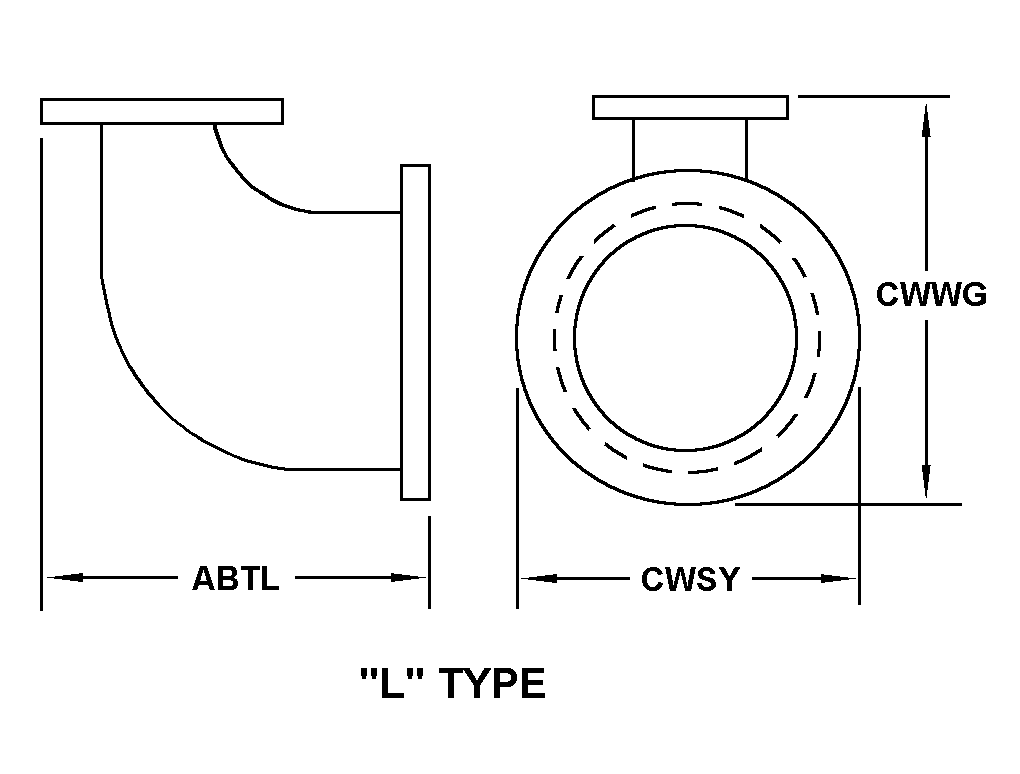

REFERENCE DRAWINGS & PICTURES
L TYPE
Cross Reference | NSN 4420-01-278-3668
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-124-2-04-215-01 | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 3-124-2-04-215-01 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
Technical Data | NSN 4420-01-278-3668
| Characteristic | Specifications |
|---|---|
| MATERIAL THICKNESS | 0.563 INCHES NOMINAL |
| STYLE DESIGNATOR | L TYPE |
| DIAMETER | 7.125 INCHES NOMINAL |
| LENGTH | 6.000 INCHES NOMINAL |
| HEIGHT | 7.125 INCHES NOMINAL |
| FLOW TYPE | SINGLE PASS |
