NSN 4420-01-240-3095
Part Details | INDUSTRIAL FLUID COOLER BONNET
4420-01-240-3095 An item designed to be attached to a SHELL, FLUID COOLER, INDUSTRIAL to provide direction of flow with minimum impact on tube ends and TUBE SHEET, FLUID COOLER, INDUSTRIAL and provide access to tubes without removal of piping.
Alternate Parts: 31250429901, 3-125-04-299-01, 3125204299, 3-125-2-04-299-, 31250429901, 3-125-04-299-01, 3125204299, 3-125-2-04-299-, 4420-01-240-3095, 01-240-3095, 4420012403095, 012403095
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 44 | SEP 12, 1986 | 01-240-3095 | 37495 ( BONNET, FLUID COOLER, INDUSTRIAL ) |
REFERENCE DRAWINGS & PICTURES

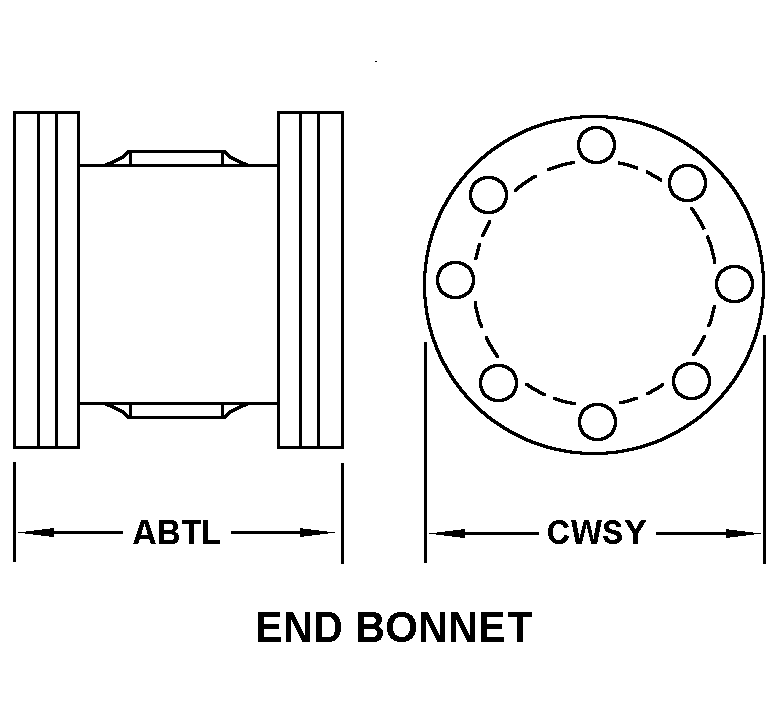

END BONNET
Cross Reference | NSN 4420-01-240-3095
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-125-04-299-01 | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 3-125-2-04-299- | 6LE50 | FLUID HANDLING, LLCDBA STANDARD XCHANGE |
| 3-125-04-299-01 | 51900 | ITT CORPORATIONDBA ITT STANDARD |
| 3-125-2-04-299- | 51900 | ITT CORPORATIONDBA ITT STANDARD |
Technical Data | NSN 4420-01-240-3095
| Characteristic | Specifications |
|---|---|
| MATERIAL THICKNESS | 0.188 INCHES NOMINAL |
| STYLE DESIGNATOR | END BONNET |
| DIAMETER | 5.875 INCHES NOMINAL |
| LENGTH | 5.410 INCHES NOMINAL |
| FLOW TYPE | SINGLE PASS |
| SPECIAL FEATURES | 8 0.375 IN. DIA HOLES ON 5.313 IN. DIA ON BOLT CIRCLE,6 0.562 IN. DIA HOLES ON 3.930 IN. DIA BOLT CIRCLE,SPOTFACE FOR NUTS |
