NSN 3020-00-058-7911
Part Details | ROLLER CHAIN LINK
3020-00-058-7911 An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH.
Alternate Parts: C1998RC25, 3020-00-058-7911, 00-058-7911, 3020000587911, 000587911
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1961 | 00-058-7911 | 04488 ( LINK, ROLLER CHAIN ) |
REFERENCE DRAWINGS & PICTURES

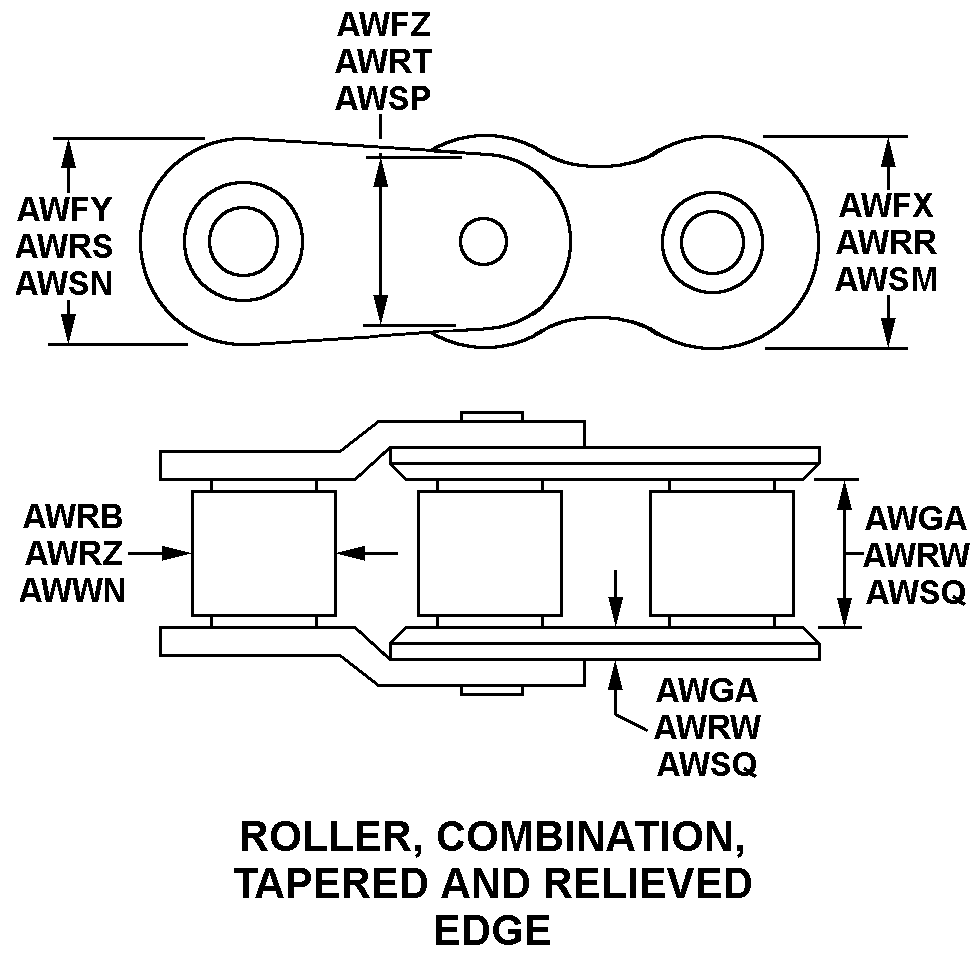

ROLLER, COMBINATION, TAPERED AND RELIEVED EDGE
Cross Reference | NSN 3020-00-058-7911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C1998RC25 | 36384 | FMC CORPLINK-BELT DIV |
Technical Data | NSN 3020-00-058-7911
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| LINK STYLE | ROLLER, COMBINATION, TAPERED AND RELIEVED EDGE |
| LINK PLATE NOMINAL THICKNESS | 0.0300 INCHES |
| LINK ROLLER NOMINAL DIAMETER | 0.1300 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 0.1250 INCHES |
| LINK PLATE WIDTH | 0.196 INCHES NOMINAL |
| LINK PLATE WIDTH AT BUSHING END | 0.226 INCHES NOMINAL |
| LINK PLATE WIDTH AT PIN END | 0.205 INCHES MAXIMUM |
| MINIMUM TENSILE STRENGTH | 780 POUNDS PER SQUARE INCH |
