NSN 2940-01-397-1199
Part Details | FLUID FILTER COVER
2940-01-397-1199 A rigid item of various shapes designed as a component of a fluid filter, acting as the cover and retaining the filter element in place. The item does not have an inlet or outlet connection. It is fastened onto the FILTER BODY, FLUID by means of clamps or bolts. For items with inlet and/or outlet connections, see HEAD, FLUID FILTER.
Alternate Parts: NP3703000, NP3703000, NP3703000, 2940-01-397-1199, 01-397-1199, 2940013971199, 013971199
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | OCT 03, 1994 | 01-397-1199 | 22569 ( COVER, FLUID FILTER ) |

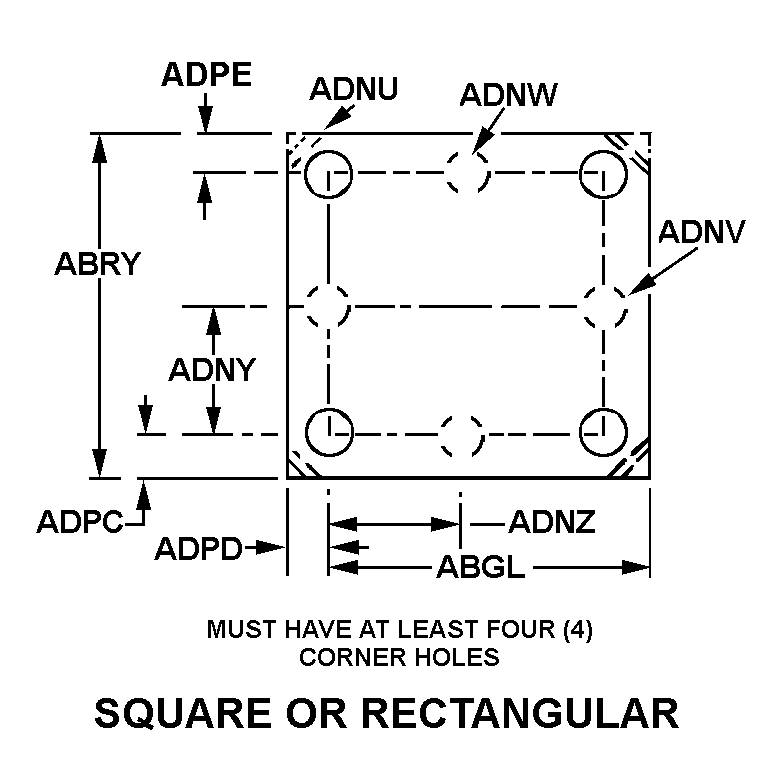

REFERENCE DRAWINGS & PICTURES
SQUARE OR RECTANGULAR
Cross Reference | NSN 2940-01-397-1199
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NP3703000 | 05643 | BARBER-GREENE CO |
| NP3703000 | 61796 | CEMEN TECH, INC. |
| NP3703000 | 0MKW7 | MINNPAR, LLCDBA MINNPAR |
Technical Data | NSN 2940-01-397-1199
| Characteristic | Specifications |
|---|---|
| ATTACHMENT METHOD | BOLTED |
| PERIPHERAL SHAPE STYLE | SQUARE OR RECTANGULAR |
| HOLE QUANTITY ALONG LENGTH | 3 |
| HOLE QUANTITY ALONG WIDTH | 3 |
| MOUNTING HOLE TYPE AND QUANTITY | 9 THREADED |
| FLUID FILTER ELEMENT RETAINER | NOT INCLUDED |
