NSN 2930-01-066-2972
Part Details | FILLER OPENING CAP
2930-01-066-2972 A part basically circular in shape, designed to cover or seal the filler-neck or inlet opening of a fuel tank, radiator, oil reservoir, liquid storage tank or the like. It may be either permanently attached to the object for which it is designed or provided with a means of removal and replacement. Excludes CAP, VENT, FUEL STORAGE TANK; and COVER (1), (as modified).
Alternate Parts: 103624, 2930-01-066-2972, 01-066-2972, 2930010662972, 010662972
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | OCT 06, 1978 | 01-066-2972 | 30128 ( CAP, FILLER OPENING ) |
REFERENCE DRAWINGS & PICTURES

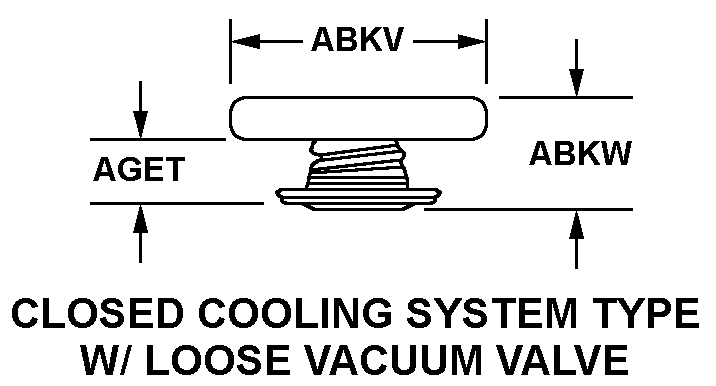

CLOSED COOLING SYSTEM TYPE W/ LOOSE VACUUM VALVE
Cross Reference | NSN 2930-01-066-2972
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 103624 | 15434 | CUMMINS INC. |
Technical Data | NSN 2930-01-066-2972
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLOSED COOLING SYSTEM TYPE W/ LOOSE VACUUM VALVE |
| OUTSIDE DIAMETER | 2.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.875 INCHES NOMINAL |
| SEALING LENGTH | 0.625 INCHES NOMINAL |
| SYSTEM FOR WHICH DESIGNED | PRESSURIZED |
| MAXIMUM WORKING PRESSURE | 7.000 POUNDS PER SQUARE INCH |
| PRESSURE RELIEF METHOD | AUTOMATIC |
| GRIPPING ACCOMMODATION TYPE | H ANY ACCEPTABLE |
