NSN 2920-00-601-8345
Part Details | ELECTRICAL ENGINE STARTER
2920-00-601-8345 An item consisting of an electric, direct current, motor and integral and associated components, primarily designed to crank an internal combustion engine, or a gas turbine engine until it starts operating under its own power. May include facilities for manual or mechanical actuation. Excludes MOTOR, ENGINE STARTER, ELECTRICAL; STARTER, MOTOR; STARTER, ENGINE (as modified); and SWITCH, ENGINE STARTER, ELECTRICAL.
Alternate Parts: YA193, YA193, YA19-3, YA55A, 2920-00-601-8345, 00-601-8345, 2920006018345, 006018345
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1961 | 00-601-8345 | 03577 ( STARTER, ENGINE, ELECTRICAL ) |
REFERENCE DRAWINGS & PICTURES

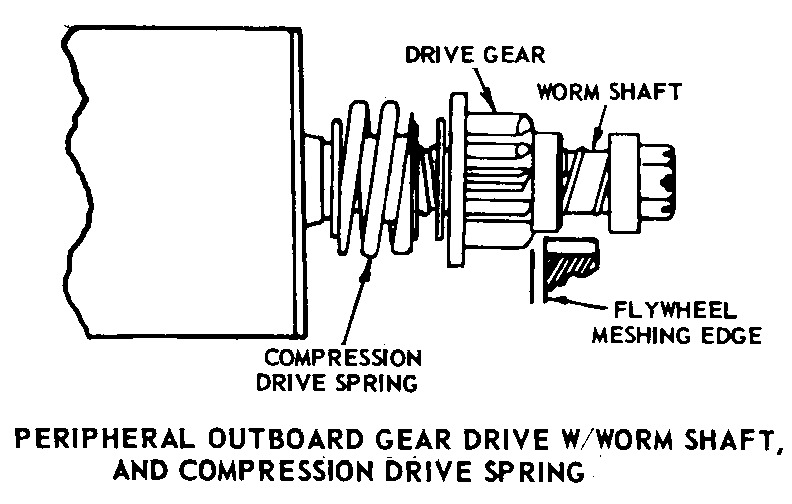

PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT, AND COMPRESSION DRIVE SPRING
Cross Reference | NSN 2920-00-601-8345
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| YA193 | 66289 | WISCONSIN MOTORS LLC |
| YA19-3 | 66289 | WISCONSIN MOTORS LLC |
| YA55A | 66289 | WISCONSIN MOTORS LLC |
Technical Data | NSN 2920-00-601-8345
| Characteristic | Specifications |
|---|---|
| ENGAGING MECHANISM STYLE | PERIPHERAL OUTBOARD GEAR DRIVE W/WORM SHAFT, AND COMPRESSION DRIVE SPRING |
| VOLTAGE IN VOLTS | 6.0 |
| LOCK TEST CURRENT RATING IN AMPS | 280.0 |
| SHAFT ROTATION DIRECTION | COUNTERCLOCKWISE |
| ENGAGING MECHANISM TO ARMATURE POSITIONAL RELATIONSHIP | STRAIGHT |
| TERMINAL TYPE AND QUANTITY | 1 THREADED STUD |
| SPECIAL FEATURES | GRUMMAN A10 AIRCRAFT |
