NSN 2815-00-355-3263
Part Details | PRECOMBUSTION CHAMBER
2815-00-355-3263 An item specifically designed to be used as an auxiliary chamber in which combustible gases are ignited and combustion started ahead of the main combustion chamber of a diesel engine. It may have provisions for a glow plug or a wick to ignite the fuel mixture during cold weather starting.
Alternate Parts: 251041R1, 251041R1, 251041R1, 251041R1, 2815-00-355-3263, 00-355-3263, 2815003553263, 003553263
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1961 | 00-355-3263 | 33265 ( CHAMBER, PRECOMBUSTION ) |
REFERENCE DRAWINGS & PICTURES

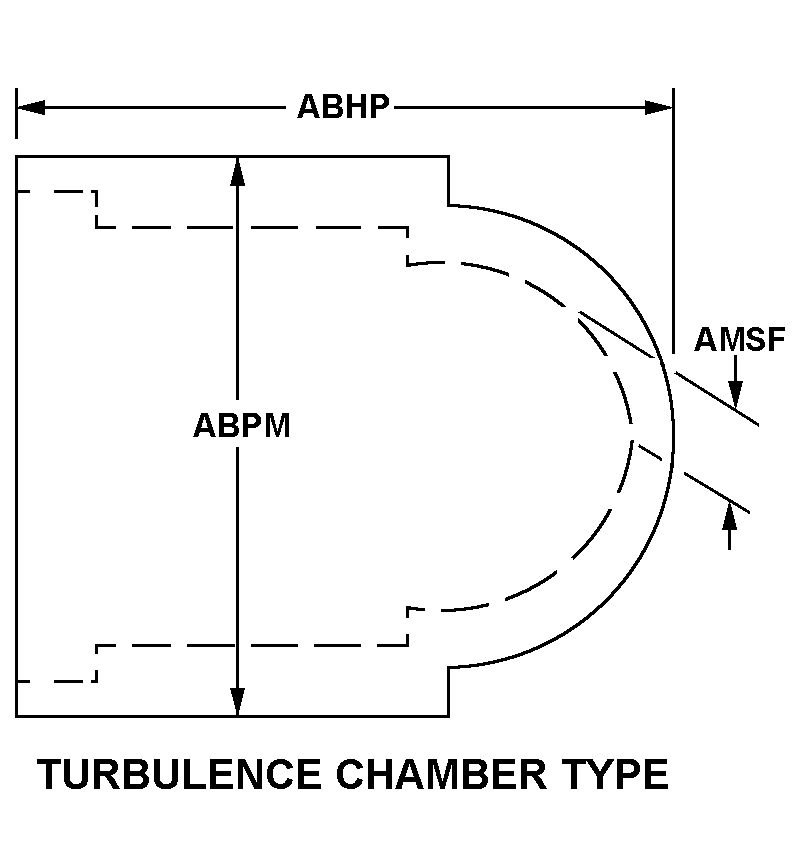

TURBULENCE CHAMBER TYPE
Cross Reference | NSN 2815-00-355-3263
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 251041R1 | 0SAT8 | KOMATSU AMERICA CORP. |
| 251041R1 | 29510 | KOMATSU AMERICAN INTL CO |
| 251041R1 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| 251041R1 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
Technical Data | NSN 2815-00-355-3263
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | TURBULENCE CHAMBER TYPE |
| OVERALL LENGTH | 2.170 INCHES NOMINAL |
| BODY DIAMETER | 2.125 INCHES NOMINAL |
| ORIFICE DIAMETER | 0.410 INCHES NOMINAL |
