NSN 2815-00-352-3150
Part Details | ENGINE POPPET VALVE
2815-00-352-3150 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.
Alternate Parts: 43173137, 4317313-7, 4317313, 2815-00-352-3150, 00-352-3150, 2815003523150, 003523150
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1961 | 00-352-3150 | 15884 ( VALVE, POPPET, ENGINE ) |
REFERENCE DRAWINGS & PICTURES
MUSHROOM

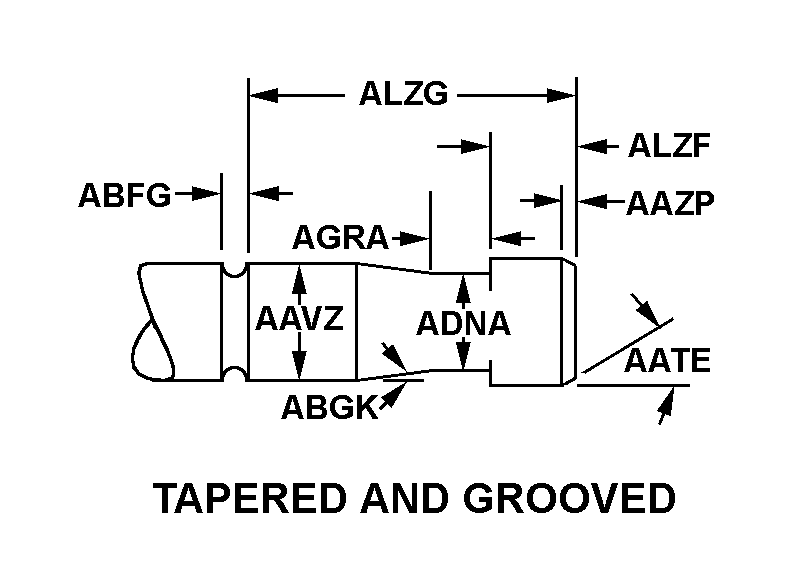

TAPERED AND GROOVED
Cross Reference | NSN 2815-00-352-3150
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4317313-7 | 6N299 | AGCO CORPPARTS OPN |
| 4317313 | 6N299 | AGCO CORPPARTS OPN |
Technical Data | NSN 2815-00-352-3150
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| HEAD STYLE | MUSHROOM |
| HEAD HEIGHT | 0.3525 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.3450 INCHES NOMINAL |
| NECK RADIUS | 0.5625 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 45.0 |
| STEM STYLE | TAPERED AND GROOVED |
| GROOVE DIAMETER | 0.4840 INCHES NOMINAL |
| CHAMFER LENGTH | 0.0625 INCHES NOMINAL |
| GROOVE WIDTH | 0.0670 INCHES NOMINAL |
| MINOR OUTSIDE DIAMETER | 0.4350 INCHES NOMINAL |
| MINOR DIAMETER LENGTH | 0.5540 INCHES NOMINAL |
| STEM LENGTH | 11.1875 INCHES NOMINAL |
| STEM DIAMETER | 0.5580 INCHES NOMINAL |
| DISTANCE FROM MINOR DIAMETER TO STEM END | 0.4940 INCHES NOMINAL |
| DISTANCE FROM GROOVE TO STEM END | 1.6650 INCHES NOMINAL |
| CHAMFER ANGLE IN DEG | 45.0 |
| TAPER ANGLE IN DEG | 15.0 |
| CARBON RELIEF GROOVE | NOT INCLUDED |
