NSN 2815-00-348-3067
Part Details | PISTON PIN
2815-00-348-3067 A cylindrically-shaped metal item, usually tubular, designed to form a pivoting connection between the piston and connecting rod of an internal combustion engine, compressor and like items. May include oil sealing or pin retaining plugs. Excludes BUSHING, SLEEVE; PIN, GROOVED, HEADLESS; PIN, STRAIGHT, HEADLESS; and PIN, HOLLOW.
Alternate Parts: FV41NN, FV4-1NN, 2815-00-348-3067, 00-348-3067, 2815003483067, 003483067
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-348-3067 | 16414 ( PIN, PISTON ) |
REFERENCE DRAWINGS & PICTURES
PLAIN ENDS

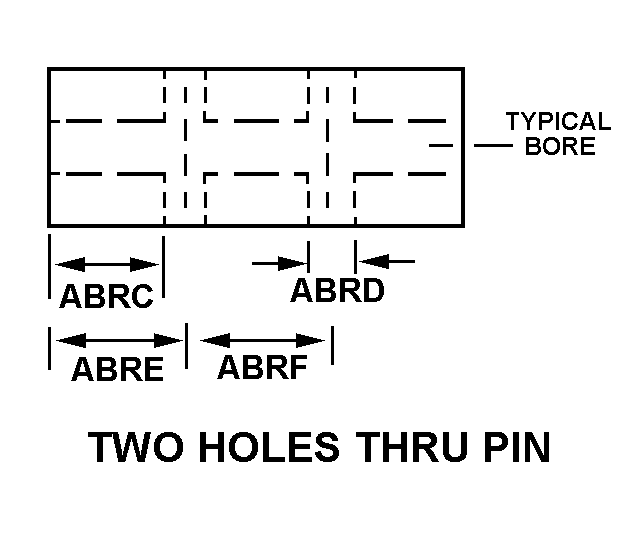

TWO HOLES THRU PIN
SOLID CENTER
Cross Reference | NSN 2815-00-348-3067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FV4-1NN | 88080 | COOPER CAMERON CORPCOOPER BESSEMER |
Technical Data | NSN 2815-00-348-3067
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| BODY STYLE | C PLAIN ENDS |
| OUTSIDE DIAMETER | 3.12500 INCHES NOMINAL |
| BODY LENGTH | 7.5000 INCHES NOMINAL |
| BORE STYLE | SOLID CENTER |
| BORE DIAMETER | 3.1250 INCHES NOMINAL |
| BORE DEPTH | 1.500 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | TWO HOLES THRU PIN |
| FIRST HOLE DIAMETER | 0.188 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.188 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 2.344 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOLES | 2.8040 INCHES NOMINAL |
