NSN 2530-00-374-1694
Part Details | PNEUMATIC TIRE WHEEL RIM
2530-00-374-1694 A circular metal item designed to mount on a WHEEL, PNEUMATIC TIRE to support and retain the tire. It may be of one piece or it may include a RING, LOCK, AUTOMOTIVE WHEEL; RING, SIDE, AUTOMOTIVE WHEEL; or RING, SIDE AND LOCK, AUTOMOTIVE WHEEL. For items with provisions for mounting on a separate hub capable of turning on a central axis, see WHEEL (as modified).
Alternate Parts: 279R5DEG1, 279R5DEG1, 279R5DEG1, 2530-00-374-1694, 00-374-1694, 2530003741694, 003741694
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-374-1694 | 17940 ( RIM, WHEEL, PNEUMATIC TIRE ) |
REFERENCE DRAWINGS & PICTURES

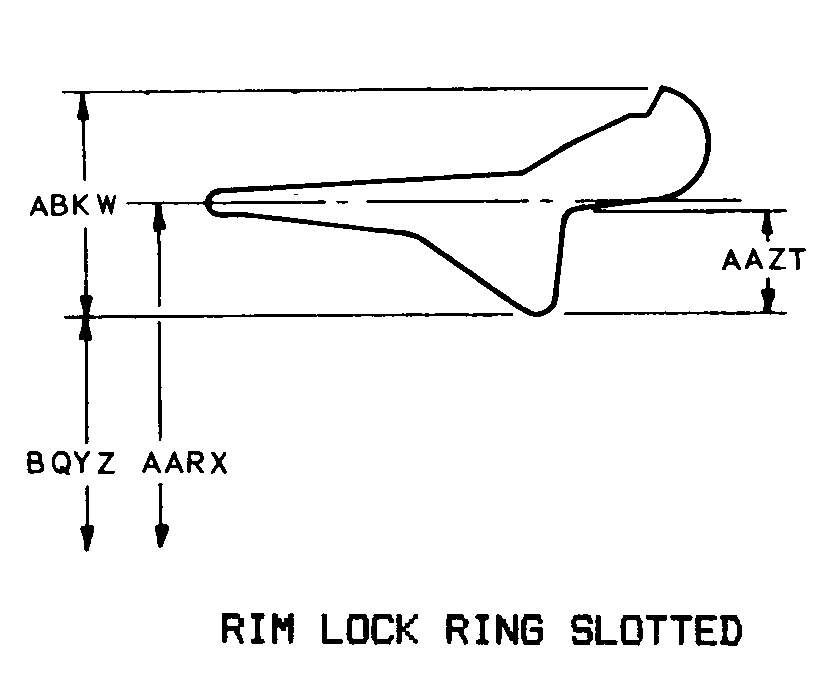

RIM LOCK RING SLOTTED
Cross Reference | NSN 2530-00-374-1694
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 279R5DEG1 | 22332 | ACCURIDE CORP |
| 279R5DEG1 | 73195 | ACCURIDE CORPORATION |
| 279R5DEG1 | 22337 | BRIDGESTONE AMERICAS TIREOPERATIONS, LLC |
Technical Data | NSN 2530-00-374-1694
| Characteristic | Specifications |
|---|---|
| TIRE DIAMETER FOR WHICH DESIGNED | 15.000 INCHES |
| GROOVE DEPTH | 1.453 INCHES MINIMUM AND 1.547 INCHES MAXIMUM |
| OVERALL WIDTH | 8.789 INCHES MINIMUM AND 8.913 INCHES MAXIMUM |
| EFFECTIVE WIDTH | 7.604 INCHES MINIMUM AND 7.728 INCHES MAXIMUM |
| SPLIT RIM FEATURE | NOT INCLUDED |
| INTEGRAL MOUNTING BOLT HOLE LUG | NOT INCLUDED |
| TIRE RETAINING RING TYPE | SIDE-LOCK |
| RING STYLE | RIM LOCK RING SLOTTED |
| VALVE HOLE SHAPE | SLOTTED |
| FSC APPLICATION DATA | WHEEL ASSY,TRAILER |
