NSN 2530-00-359-0816
Part Details | HYDRAULIC BRAKE MASTER CYLINDER PUSH ROD
2530-00-359-0816 An item in the form of a rod with one end designed to mate with the socket of a PISTON, HYDRAULIC BRAKE, MASTER CYLINDER, the other end designed to connect with various forms of rod connectors.
Alternate Parts: 647282, 561955R91, F11067, FC11067, 98MJB1, 98MJB1, 561955R91, 561955R1, 7697473, 2530-00-359-0816, 00-359-0816, 2530003590816, 003590816
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-359-0816 | 18736 ( PUSH ROD, HYDRAULIC BRAKE MASTER CYLINDER ) |
REFERENCE DRAWINGS & PICTURES
THREADED INTERNAL, HEXAGON

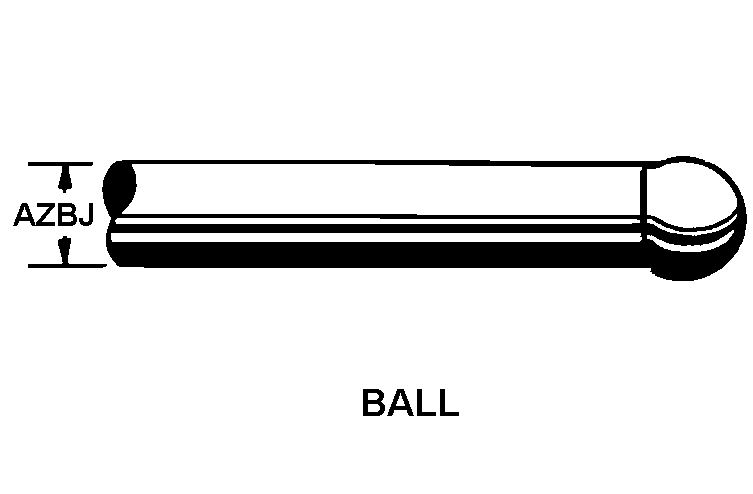

BALL
Cross Reference | NSN 2530-00-359-0816
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 647282 | 34623 | AM GENERAL LLC |
| 561955R91 | 45RP7 | DRESSTA NORTH AMERICA LTD |
| F11067 | 63477 | FEDERAL MOGUL CORPSUB WAGNER BRAKE |
| FC11067 | 63477 | FEDERAL MOGUL CORPSUB WAGNER BRAKE |
| 98MJB1 | 05415 | LINDE LIFT TRUCK CORP. |
| 98MJB1 | 556A6 | LINDE MATERIAL HANDLING NORTHAMERICA CORP |
| 561955R91 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
| 561955R1 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
| 7697473 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2530-00-359-0816
| Characteristic | Specifications |
|---|---|
| LINK ROD CONNECTING END STYLE | THREADED INTERNAL, HEXAGON |
| PISTON SOCKET END STYLE | BALL |
| ROD DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL LENGTH | 3.527 INCHES MINIMUM AND 3.567 INCHES MAXIMUM |
