NSN 2530-00-311-7621
Part Details | BALL SOCKET SEAT
2530-00-311-7621 A rigid item, usually circular in shape, having a concave or bevel bearing surface on one end. It is designed to mate with and provide a wear surface for the ball of a ball stud, control rod, arm, or the like. The other end is usually flat, flanged, or offset and is usually designed to mate with a flat surface or spring. Includes metal items having a plastic ball socket insert. See also WASHER, CONCAVE.
Alternate Parts: KC5132, 28DM35, 1108X50, 98897R1, 9040421, 7369965, 2530-00-311-7621, 00-311-7621, 2530003117621, 003117621
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-311-7621 | 19451 ( SEAT, BALL SOCKET ) |

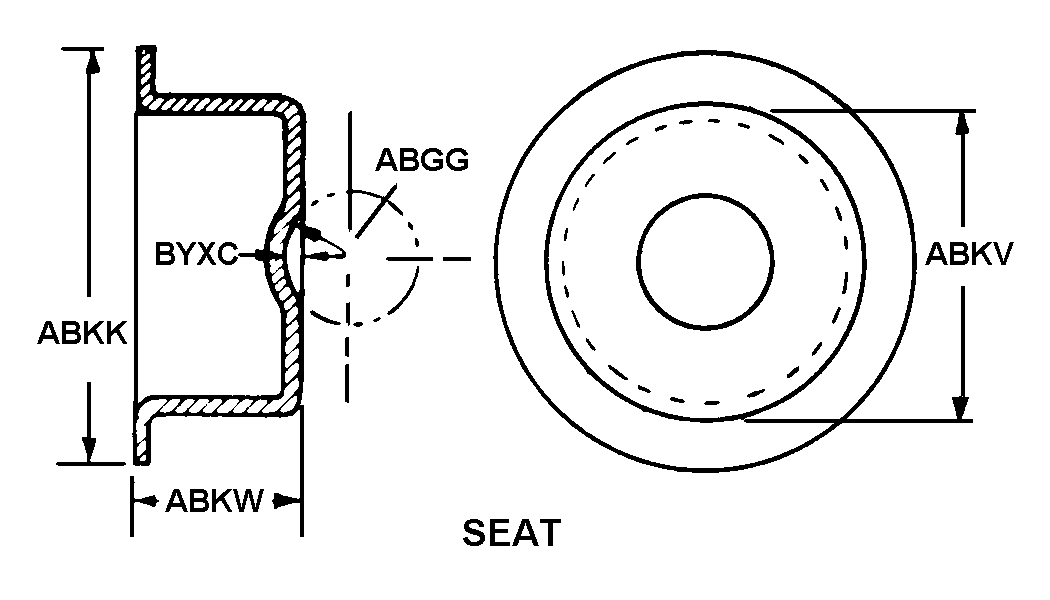

REFERENCE DRAWINGS & PICTURES
SEAT
Cross Reference | NSN 2530-00-311-7621
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KC5132 | 56442 | DIAMOND REO TRUCK CO |
| 28DM35 | 59875 | EATON INDUSTRIAL CORPORATIONDBA ARGO-TECH |
| 1108X50 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC |
| 98897R1 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
| 9040421 | 97907 | TEREX CORP |
| 7369965 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2530-00-311-7621
| Characteristic | Specifications |
|---|---|
| MATERIAL HARDNESS RATING | 57.0 ROCKWELL C MINIMUM AND 60.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | SEAT |
| RADIUS | 0.383 INCHES NOMINAL |
| BALL SEAT DEPTH | 0.094 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.625 INCHES NOMINAL |
| OVERALL HEIGHT | 0.969 INCHES NOMINAL |
| FLANGE DIAMETER | 2.2350 INCHES MINIMUM AND 2.2400 INCHES MAXIMUM |
