NSN 2530-00-278-2252
Part Details | PNEUMATIC TIRE WHEEL
2530-00-278-2252 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.
Alternate Parts: 67340D1, D523067340D1, D5230-67340D1, T66A, 16T2200, 44470, 10S, 16T2200, 10S, 10074, 8329180, 2530-00-278-2252, 00-278-2252, 2530002782252, 002782252
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-278-2252 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
REFERENCE DRAWINGS & PICTURES

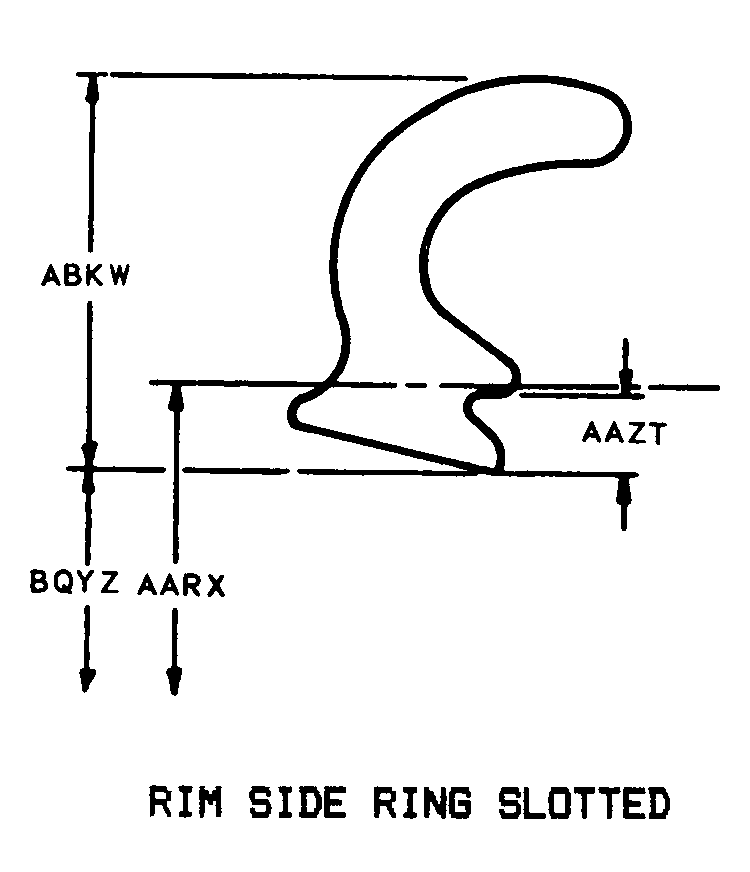

RIM SIDE RING SLOTTED
Cross Reference | NSN 2530-00-278-2252
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 67340D1 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| D5230-67340D1 | 02945 | AMERICAN STEEL WORKS INC |
| T66A | 09136 | BAY CITY SHOVELS, INC |
| 16T2200 | 81336 | CHIEF OF ENGINEERSDEPT OF ARMY |
| 44470 | 23705 | FRUEHAUF CORP |
| 10S | 14234 | GREAT DANE TRAILERS INC |
| 16T2200 | 34640 | LA CROSSE TRAILER CORP |
| 10S | 89120 | STEEL PRODUCTS CORP |
| 10074 | 13841 | TIFFIN PARTS, L.L.C.DIV SUBSIDIARY OF PETTIBONE CORP. |
| 8329180 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2530-00-278-2252
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 20.000 INCHES |
| TIRE | NOT INCLUDED |
| DESIGN FORM | DISK |
| DISK TYPE | SINGLE |
| MOUNTING FACE TYPE | CONVEX |
| OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE | 6.125 INCHES MINIMUM AND 6.250 INCHES MAXIMUM |
| LIGHTENING HOLE | INCLUDED |
| LIGHTENING HOLE QUANTITY | 6 |
| LIGHTENING HOLE HUB CAP MOUNTING FEATURE | NOT INCLUDED |
| DESIGN TYPE | INTEGRAL RIM |
| GROOVE DEPTH | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 8.000 INCHES NOMINAL |
| EFFECTIVE WIDTH | 6.000 INCHES NOMINAL |
| RING TYPE FOR WHICH DESIGNED | SIDE |
| RING | NOT INCLUDED |
| RING STYLE | RIM SIDE RING SLOTTED |
| BOLT/STUD MOUNTING FACILITY | NOT INCLUDED |
| VALVE HOLE SHAPE | SLOTTED |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | NOT INCLUDED |
| PILOT HOLE DIAMETER | 8.725 INCHES MINIMUM AND 8.729 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 10 |
| MOUNTING HOLE DIAMETER | 1.125 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 11.250 INCHES NOMINAL |
