NSN 2530-00-278-2251
Part Details | PNEUMATIC TIRE WHEEL
2530-00-278-2251 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.
Alternate Parts: B45520D, B45520, 45520D1, 45520D, 45520, 45520, 45520, 45520, 45520, 45520, 45520, 45520, 45520, 45520, 45520, 45520, 45520, 45520, 45520, 45520, 2132, 2-132, 45520, 45520, 7414307, 7378031, 9CJ4403, 400687, 2530-00-278-2251, 00-278-2251, 2530002782251, 002782251
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-278-2251 | 17959 ( WHEEL, PNEUMATIC TIRE ) |
REFERENCE DRAWINGS & PICTURES

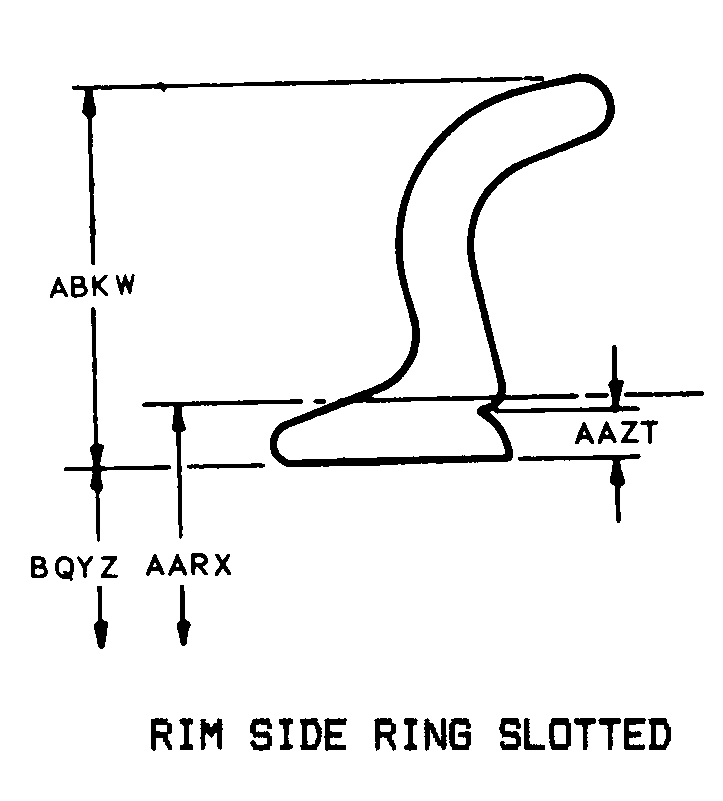

RIM SIDE RING SLOTTED
Cross Reference | NSN 2530-00-278-2251
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B45520D | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| B45520 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 45520D1 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 45520D | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 45520 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 45520 | 82362 | DAYTON TRAILER SALES INC |
| 45520 | 80328 | DORSEY TRAILERS INC |
| 45520 | 23705 | FRUEHAUF CORP |
| 45520 | 80571 | FRUEHAUF CORPFRUEHAUF DIV |
| 45520 | 33323 | KENWORTH TRUCK COA DIV OF PACCAR INC |
| 45520 | 75264 | KEYSTON BROS |
| 45520 | 75460 | KRIEGER STEEL SECTIONS INC |
| 45520 | 38460 | LONG-AIRDOX CO |
| 45520 | 40670 | MILLER TRAILERS INC |
| 45520 | 89108 | OMAHA STANDARD INC.DBA EAGLELIFT |
| 45520 | 44950 | ONEIDA LTD SILVERSMITHS |
| 45520 | 45320 | PACCAR GOVERNMENT GROUP COYARROW BAY OFFICE PK |
| 45520 | 47249 | PIKE TRAILER CO |
| 45520 | 77495 | QUEEN CITY TRAILER SALES |
| 45520 | 58141 | STRICK TRAILER CO |
| 2-132 | 31245 | TEREX USA, LLCDBA CEDARAPIDS |
| 45520 | 78550 | TIMPTE INC |
| 45520 | 78725 | TRANSPORTATION EQUIPMENT CO INC |
| 7414307 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 7378031 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 9CJ4403 | 62265 | VOLVO TRUCKS NORTH AMERICA INC.DBA FOREIGN PARENT IS VOLVO |
| 400687 | 65282 | WHITE MOTOR CORP |
Technical Data | NSN 2530-00-278-2251
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 20.000 INCHES |
| TIRE | NOT INCLUDED |
| DESIGN FORM | DISK |
| DISK TYPE | SINGLE |
| MOUNTING FACE TYPE | CONVEX |
| OFFSET DISTANCE FROM RIM CENTERLINE TO OUTSIDE WHEEL MOUNTING FACE | 6.406 INCHES MINIMUM AND 6.531 INCHES MAXIMUM |
| LIGHTENING HOLE | INCLUDED |
| LIGHTENING HOLE QUANTITY | 6 |
| LIGHTENING HOLE HUB CAP MOUNTING FEATURE | NOT INCLUDED |
| DESIGN TYPE | DEMOUNTABLE RIM |
| RIM | INCLUDED |
| GROOVE DEPTH | 1.750 INCHES NOMINAL |
| OVERALL WIDTH | 10.875 INCHES NOMINAL |
| EFFECTIVE WIDTH | 8.250 INCHES NOMINAL |
| RING TYPE FOR WHICH DESIGNED | SIDE |
| RING | NOT INCLUDED |
| RING STYLE | RIM SIDE RING SLOTTED |
| BOLT/STUD MOUNTING FACILITY | NOT INCLUDED |
| VALVE HOLE SHAPE | SLOTTED |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | NOT INCLUDED |
| PILOT HOLE DIAMETER | 8.725 INCHES MINIMUM AND 8.729 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 10 |
| MOUNTING HOLE DIAMETER | 1.125 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 11.250 INCHES NOMINAL |
