NSN 2530-00-278-2241
Part Details | AUTOMOTIVE WHEEL SIDE RING
2530-00-278-2241 A one-piece metal device designed to fit the outer circumference of a wheel or wheel rim. It is held in position by a locking ring or has self-locking features for positioning and retaining a pneumatic tire. It may also be split and/or held by bolts and studs.
Alternate Parts: 45441D6, 924622, C91567, 7347608, 5591567, 2530-00-278-2241, 00-278-2241, 2530002782241, 002782241
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-278-2241 | 10969 ( RING, SIDE, AUTOMOTIVE WHEEL ) |
REFERENCE DRAWINGS & PICTURES

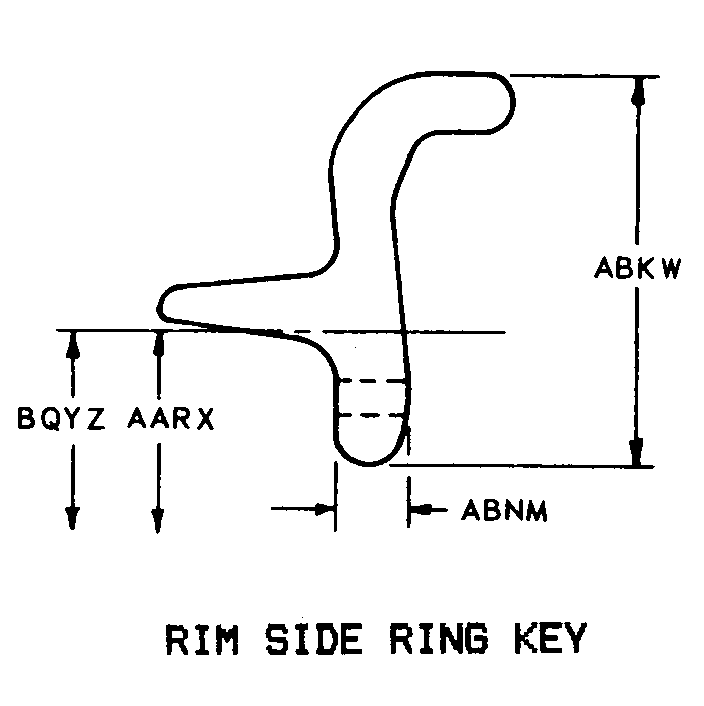

RIM SIDE RING KEY
Cross Reference | NSN 2530-00-278-2241
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 45441D6 | 09386 | ALLIEDSIGNAL INCALLIEDSIGNAL BRAKING SYSTEMS-WHEEL |
| 924622 | 12204 | DAIMLER CHRYSLER |
| C91567 | 00000 | ORDNANCE CORPS |
| 7347608 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 5591567 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2530-00-278-2241
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | RIM SIDE RING KEY |
| INSIDE DIAMETER | 15.313 INCHES MINIMUM AND 15.343 INCHES MAXIMUM |
| SLOT DEPTH | 0.187 INCHES NOMINAL |
| OVERALL HEIGHT | 2.764 INCHES MINIMUM AND 2.780 INCHES MAXIMUM |
| INSIDE CIRCUMFERENCE | 48.107 INCHES MINIMUM AND 48.201 INCHES MAXIMUM |
| DESIGN TYPE | ENDLESS PLAIN |
| HOLE QUANTITY | 10 |
| MOUNTING HOLE SPACING | EQUALLY SPACED ON A 14-5/16 IN. BOLT CIRCLE |
| SIZE DESIGNATOR | 16X6.5 |
| MATERIAL | STEEL COMP 1030 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-633, FS1030-CANCELED FED SPEC SINGLE MATERIAL RESPONSE |
| VALVE CLEARANCE NOTCH QUANTITY | 2 |
| LEVERAGE SLOT | NOT INCLUDED |
