NSN 2530-00-248-3864
Part Details | AUTOMOTIVE WHEEL LOCK RING
2530-00-248-3864 A one-piece metal device designed to fit a matching groove in the outer edge of a wheel or wheel rim for holding the side ring in position. It may be split.
Alternate Parts: 3696716, 3696716, 2530-00-248-3864, 00-248-3864, 2530002483864, 002483864
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | NOV 07, 1969 | 00-248-3864 | 10968 ( RING, LOCK, AUTOMOTIVE WHEEL ) |
REFERENCE DRAWINGS & PICTURES

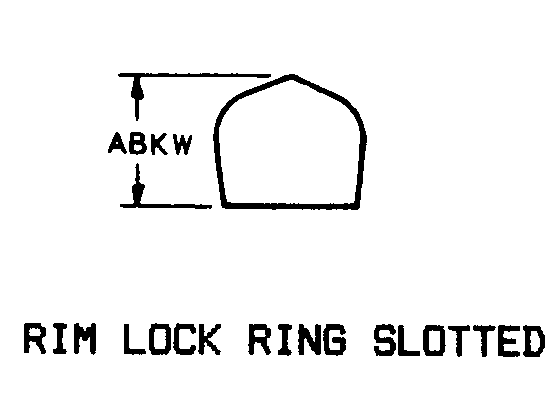

RIM LOCK RING SLOTTED
Cross Reference | NSN 2530-00-248-3864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3696716 | 11862 | GENERAL MOTORS CORPCHEVROLET MOTOR DIV |
| 3696716 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 2530-00-248-3864
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | RIM LOCK RING SLOTTED |
| OVERALL HEIGHT | 0.461 INCHES NOMINAL |
| DESIGN TYPE | SPLIT SNAP-ON |
| SIZE DESIGNATOR | 20X7 |
| MATERIAL | STEEL |
| LEVERAGE SLOT | NOT INCLUDED |
