NSN 9540-00-027-9143

Part Details | STRUCTURAL CHANNEL

9540-00-027-9143 A structural shape fabricated from a ferrous or nonferrous material and has a flange extending usually at right angles in the same direction from each edge of a web and/or resembling the letter U in cross-sectional form.

Alternate Parts: LS976, 9540-00-027-9143, 00-027-9143, 9540000279143, 000279143

Supply Group (FSG)	NSN Assigned	NIIN	Item Name Code (INC)
95	JAN 01, 1963	00-027-9143	37019 ( CHANNEL, STRUCTURAL )

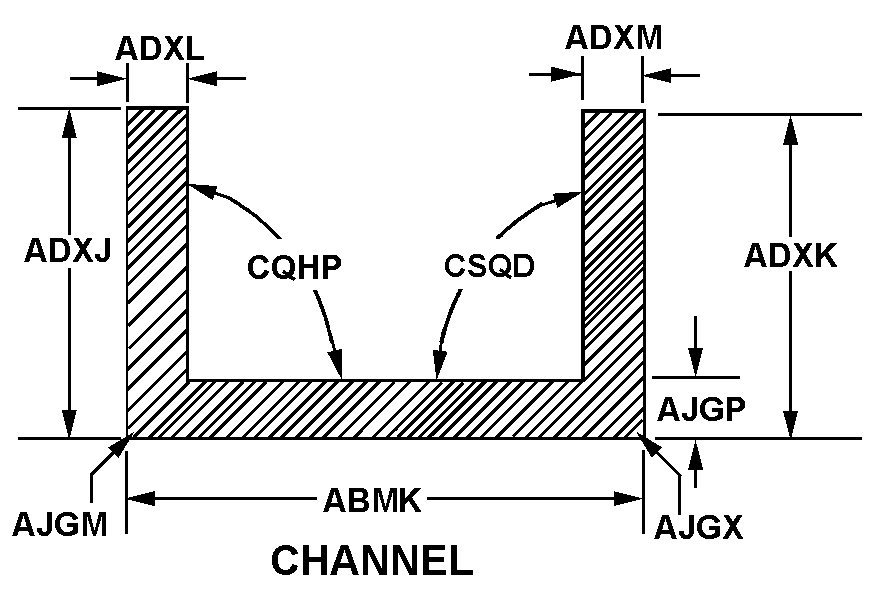

REFERENCE DRAWINGS & PICTURES

CHANNEL

SQUARE END

Cross Reference | NSN 9540-00-027-9143

Part Number	Cage Code	Manufacturer
LS976	98897	LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS

Technical Data | NSN 9540-00-027-9143

Characteristic	Specifications
FABRICATION METHOD	EXTRUDED
BASIC SHAPE STYLE	5 CHANNEL
OVERALL WIDTH	2.250 INCHES NOMINAL
LEFT SIDE FLANGE HEIGHT	1.625 INCHES NOMINAL
RIGHT SIDE FLANGE HEIGHT	1.625 INCHES NOMINAL
LEFT SIDE FLANGE THICKNESS	0.125 INCHES NOMINAL
RIGHT SIDE FLANGE THICKNESS	0.125 INCHES NOMINAL
LEFT SIDE TOP FLANGE THICKNESS	0.125 INCHES NOMINAL
RIGHT SIDE TOP FLANGE THICKNESS	0.125 INCHES NOMINAL
LEFT SIDE TOP FLANGE WIDTH	0.750 INCHES NOMINAL
RIGHT SIDE TOP FLANGE WIDTH	0.750 INCHES NOMINAL
FILLET RADIUS WHERE LEFT FLANGE JOINS TOP FLANGE	0.060 INCHES NOMINAL
FILLET RADIUS WHERE RIGHT FLANGE JOINS TOP FLANGE	0.060 INCHES NOMINAL
FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE	0.120 INCHES NOMINAL
BASE FLANGE THICKNESS	0.125 INCHES NOMINAL
BASE FLANGE WIDTH	0.750 INCHES NOMINAL
FILLET RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE	0.120 INCHES NOMINAL
LEFT INSIDE ANGLE	90.0 DEGREES NOMINAL
RIGHT INSIDE ANGLE	90.0 DEGREES NOMINAL
FIRST TIP STYLE	SQUARE END
SECOND TIP RELATIONSHIP TO FIRST TIP	IDENTICAL
WEIGHT PER UNIT MEASURE	0.806 POUNDS PER LINEAR FOOT
MATERIAL	ALUMINUM ALLOY
