NSN 9520-01-435-3056
Part Details | STRUCTURAL BEAM
9520-01-435-3056 A structural shape fabricated from a ferrous or nonferrous material and resembles the following cross-sectional forms: For the letter H, both flanges of the H section are equal or longer than the width measured along the axis of the web; for the letter I, a 16 2/3 percent slope on the inside face of the ferrous type flange, either one or both of the nonferrous type flanges are shorter than the length measured along the axis of the web; for the letters T and Z, on nonferrous type, the web is usually at right angles to the flanges. Letter H section may have a maximum of 5 percent slope on the inside face of the flanges.
Alternate Parts: 6569553, 9520-01-435-3056, 01-435-3056, 9520014353056, 014353056
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | AUG 20, 1996 | 01-435-3056 | 37018 ( BEAM, STRUCTURAL ) |
REFERENCE DRAWINGS & PICTURES

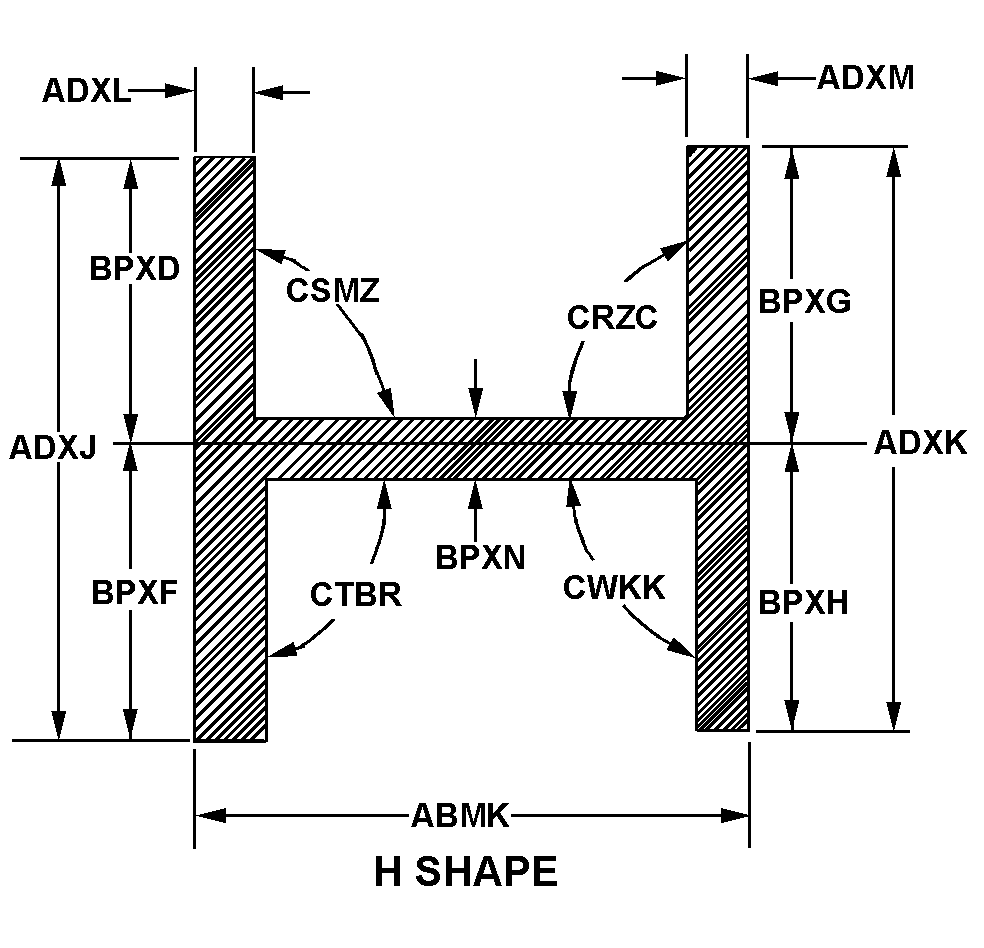

H SHAPE
SQUARE END
SQUARE END
SQUARE END
SQUARE END
Cross Reference | NSN 9520-01-435-3056
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6569553 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 9520-01-435-3056
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |
| SURFACE TREATMENT | ANODIZE |
| LENGTH | 2650.0 MILLIMETERS NOMINAL |
| BASIC SHAPE STYLE | H SHAPE |
| OVERALL WIDTH | 100.0 MILLIMETERS NOMINAL |
| FIRST TIP STYLE | SQUARE END |
| FIRST TIP FLANGE WIDTH | 10.0 MILLIMETERS NOMINAL |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| THIRD TIP RELATIONSHIP TO PRECEDING TIPS | IDENTICAL W/FIRST TIP |
| FOURTH TIP RELATIONSHIP TO PRECEDING TIPS | IDENTICAL W/FIRST TIP |
| SPECIAL FEATURES | TWO LAYERS OF GREY POLYURETHANE,ALIPHATIC,WEATHER RESISTANT COATING; IDENTIFY WITH LETTER STAMPS AT PLACE INDICATED TO SHOW CAGE CODE 53711 AND DRAWING NUMBER 6569553 |
