NSN 9520-00-114-0842
Part Details | STRUCTURAL CHANNEL
9520-00-114-0842 A structural shape fabricated from a ferrous or nonferrous material and has a flange extending usually at right angles in the same direction from each edge of a web and/or resembling the letter U in cross-sectional form.
Alternate Parts: QQS741, 9520-00-114-0842, 00-114-0842, 9520001140842, 001140842
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 95 | SEP 16, 1968 | 00-114-0842 | 37019 ( CHANNEL, STRUCTURAL ) |

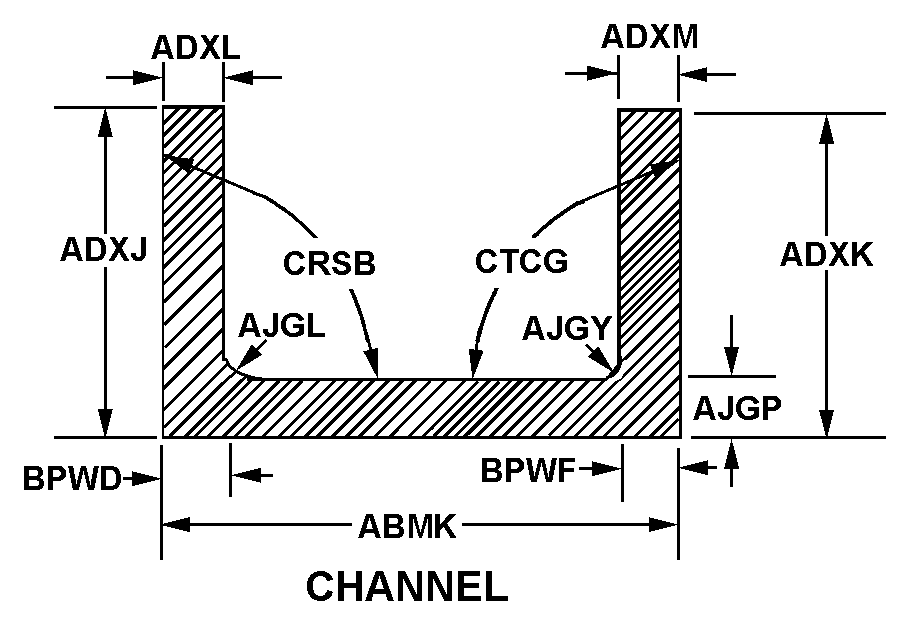

REFERENCE DRAWINGS & PICTURES
CHANNEL
SQUARE END
SQUARE END
SQUARE END
SQUARE END
Cross Reference | NSN 9520-00-114-0842
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| QQS741 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 9520-00-114-0842
| Characteristic | Specifications |
|---|---|
| FABRICATION METHOD | S ANY ACCEPTABLE |
| HEAT TREATMENT | AS FABRICATED |
| LENGTH | 20.000 FEET MINIMUM AND 30.000 FEET MAXIMUM |
| BASIC SHAPE STYLE | CHANNEL |
| OVERALL WIDTH | 8.000 INCHES NOMINAL |
| LEFT SIDE FLANGE HEIGHT | 2.343 INCHES NOMINAL |
| RIGHT SIDE FLANGE HEIGHT | 2.343 INCHES NOMINAL |
| LEFT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.312 INCHES NOMINAL |
| LEFT FLANGE THICKNESS AT BASE | 0.500 INCHES NOMINAL |
| RIGHT FLANGE THICKNESS AT BASE | 0.500 INCHES NOMINAL |
| LEFT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| RIGHT OUTSIDE ANGLE | 90.0 DEGREES NOMINAL |
| FIRST TIP STYLE | SQUARE END |
| SECOND TIP RELATIONSHIP TO FIRST TIP | IDENTICAL |
| WEIGHT PER UNIT MEASURE | 13.750 POUNDS PER LINEAR FOOT |
| MATERIAL DOCUMENT AND CLASSIFICATION | STEEL,ASTM A36,UNS K02600 INTERNATIONAL STD/SPEC ALL MATERIAL RESPONSES |
| MATERIAL | STEEL UNS K02600 |
