NSN 9390-00-136-9204
Part Details | NONMETALLIC CHANNEL
9390-00-136-9204 A structural shape fabricated from nonmetallic material(s) having two vertical flanges that extend in the same direction from each end of a horizontal base. The vertical flanges may have various type tips and additional flanges which extend on the same plane as the base. It may have a reinforcing agent(s) and backing Excludes SEAL, NONMETALLIC CHANNEL.
Alternate Parts: 9390001369204, 2122003520, 2-122-003520, 122003534, 122-003534, MILR3065, 11657751, 9390-00-136-9204, 00-136-9204, 9390001369204, 001369204
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 93 | JUL 24, 1971 | 00-136-9204 | 30218 ( NONMETALLIC CHANNEL ) |
REFERENCE DRAWINGS & PICTURES
OPEN CHANNEL

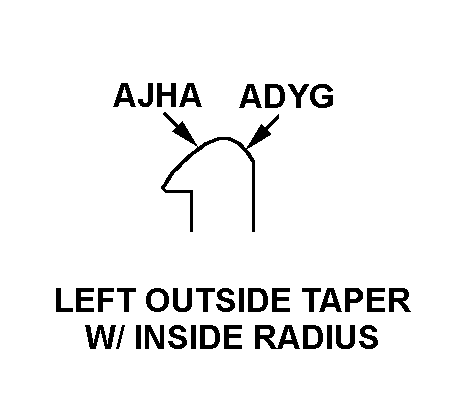

LEFT OUTSIDE TAPER W/INSIDE RADIUS

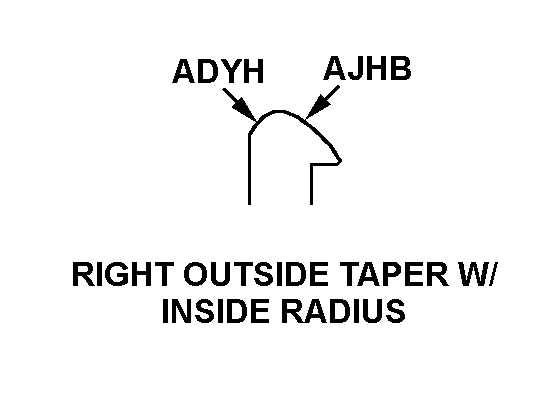

RIGHT OUTSIDE TAPER W/ INSIDE RADIUS
Cross Reference | NSN 9390-00-136-9204
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9390001369204 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 2-122-003520 | 72286 | EXCEL CORP |
| 122-003534 | 72286 | EXCEL CORP |
| MILR3065 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 11657751 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 9390-00-136-9204
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | OPEN CHANNEL |
| OVERALL HEIGHT | 0.386 INCHES MINIMUM AND 0.426 INCHES MAXIMUM |
| OVERALL WIDTH | 0.430 INCHES MINIMUM AND 0.470 INCHES MAXIMUM |
| RIGHT SIDE FLANGE HEIGHT | 0.386 INCHES MINIMUM AND 0.426 INCHES MAXIMUM |
| LEFT SIDE FLANGE THICKNESS | 0.040 INCHES NOMINAL |
| RIGHT SIDE FLANGE THICKNESS | 0.040 INCHES NOMINAL |
| FILLET RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.020 INCHES NOMINAL |
| OUTER RADIUS WHERE LEFT FLANGE JOINS BASE FLANGE | 0.090 INCHES NOMINAL |
| BASE FLANGE THICKNESS | 0.060 INCHES NOMINAL |
| OUTER RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.090 INCHES NOMINAL |
| FILLET RADIUS WHERE RIGHT FLANGE JOINS BASE FLANGE | 0.020 INCHES NOMINAL |
| LEFT-SIDE FLANGE TIP STYLE | 0 LEFT OUTSIDE TAPER W/INSIDE RADIUS |
| LEFT SIDE FLANGE TOP OUTER RADIUS | 0.141 INCHES MINIMUM AND 0.171 INCHES MAXIMUM |
| RIGHT-SIDE FLANGE TIP STYLE | 0 RIGHT OUTSIDE TAPER W/ INSIDE RADIUS |
| RIGHT SIDE FLANGE TOP OUTER RADIUS | 0.141 INCHES MINIMUM AND 0.171 INCHES MAXIMUM |
| LENGTH | 70.600 INCHES NOMINAL |
| MATERIAL | RUBBER SYNTHETIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-STD-417, TYPE R, CLASS RS, GRADE RS615C1F1GP MIL STD SINGLE MATERIAL RESPONSE |
| NONMETALLIC HARDNESS RATING | 55.0 MINIMUM SHORE DUROMETER A AND 65.0 MAXIMUM SHORE DUROMETER A |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| TEMP RATING | -40.0 DEG FAHRENHEIT |
| ENVIRONMENTAL PROTECTION | STAIN AND TEAR AND LOW TEMPERATURE AND OZONE RESISTANT |
| SPECIAL FEATURES | COLOR,BLACK |
