NSN 8465-01-557-7972
Part Details | WEBBING STRAP
8465-01-557-7972 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: 1407501, 1407-501, 1407501, 1407-501, 8465-01-557-7972, 01-557-7972, 8465015577972, 015577972
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 84 | OCT 29, 2007 | 01-557-7972 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES

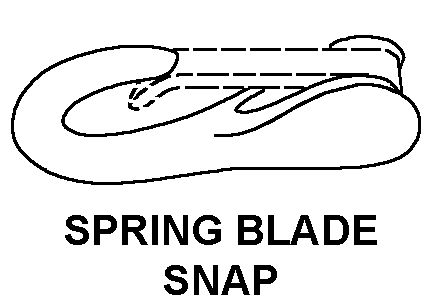

SPRING BLADE SNAP
Cross Reference | NSN 8465-01-557-7972
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1407-501 | 3FE87 | NIVISYS INDUSTRIES, LLC |
| 1407-501 | 6QUG2 | NIVISYS, LLC |
Technical Data | NSN 8465-01-557-7972
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE |
| WIDTH | 1.000 INCHES NOMINAL |
| END TYPE | BOTH W/ATTACHMENTS |
| COLOR | BLACK |
| ATTACHMENT METHOD FOR WHICH DESIGNED | SNAP FASTENER |
| END ATTACHMENT/FASTENING FACILITY | HOOK |
| HOOK STYLE DESIGNATOR | SPRING BLADE SNAP |
| HOOK CONNECTION TYPE | NONSWIVELING |
| HOOK QUANTITY | 2 |
| END ITEM IDENTIFICATION | TAM-14 MOD 7 THERMAL ACQUISITION MONOCULAR |
| SPECIAL FEATURES | LENGTH ADJUSTMENT CLIP |
