NSN 8465-01-536-3477
Part Details | LASER PROTECTIVE SPECTACLES
8465-01-536-3477 Spectacles designed to provide an interim measure of protection against eye damage occasioned by tactical and industrial use of lasers. Excludes SPECTACLES (1), INDUSTRIAL and spectacles having corrective lenses.
Alternate Parts: ESSICEL15, ESSICEL-15, 8465-01-536-3477, 01-536-3477, 8465015363477, 015363477
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 84 | DEC 29, 2005 | 01-536-3477 | 32240 ( SPECTACLES, LASER PROTECTIVE ) |
REFERENCE DRAWINGS & PICTURES
SPECIAL SHAPE

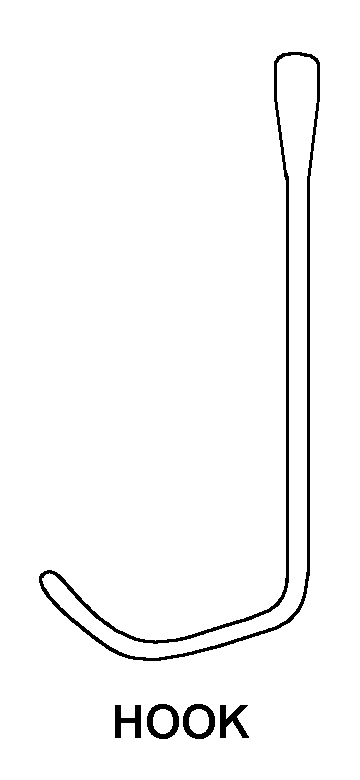

HOOK
SINGLE BAR SADDLE BRIDGE
Cross Reference | NSN 8465-01-536-3477
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ESSICEL-15 | 1NG39 | EYE SAFETY SYSTEMS, INC.DBA E S S |
Technical Data | NSN 8465-01-536-3477
| Characteristic | Specifications |
|---|---|
| FRONT STYLE DESIGNATOR | 7 SINGLE BAR SADDLE BRIDGE |
| BRIDGE MATERIAL | PLASTIC, POLYCARBONATE |
| BRIDGE SURFACE TREATMENT | |
| RIM MATERIAL | PLASTIC, POLYCARBONATE |
| RIM SURFACE TREATMENT | |
| PLASTIC FRONT COLOR | GREEN |
| NOSE BRIDGE WIDTH | 37.0 MILLIMETERS NOMINAL |
| NOSE SHIELD | NOT INCLUDED |
| BRIDGE COVER | NOT INCLUDED |
| TEMPLE SECTION STYLE DESIGNATOR | HOOK |
| TEMPLE SECTION MATERIAL | PLASTIC, POLYCARBONATE |
| TEMPLE SECTION SURFACE TREATMENT | |
| TEMPLE CORE | NOT INCLUDED |
| HEADBAND | NOT PROVIDED |
| LENS TYPE | FILTER |
| LENS MATERIAL | PLASTIC, POLYCARBONATE |
| BICOLORED FEATURE | NOT INCLUDED |
| COLORED PORTION PERCENT | 40.000 |
| NATIONAL BUREAU OF STANDARDS SHADE NUMBER | S2 |
| LENS COLOR | GREEN |
| POLARIZATION FEATURE | NOT INCLUDED |
| DIOPTER CURVE LENS | NOT INCLUDED |
| LENS SHAPE | SPECIAL |
| LENS STYLE | SPECIAL SHAPE |
| SPARE LENS | NOT INCLUDED |
| SIDE SHIELD | NOT INCLUDED |
| OVER OTHER SPECTACLES USAGE DESIGN | NOT INCLUDED |
| CARRYING CASE | NOT PROVIDED |
