NSN 8345-00-393-1169
Part Details | MARITIME DAY SHAPE
8345-00-393-1169 An object of specified geometric form required by law to be exhibited by a vessel when engaged in certain occupations hazardous to navigation, or to indicate certain conditions of limited maneuverability. The color, minimum dimensions, and conditions of use are prescribed by law. It is usually constructed of metal and fabric to be collapsible.
Alternate Parts: DB2430, DB-2430, 8345-00-393-1169, 00-393-1169, 8345003931169, 003931169
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 83 | JAN 01, 1963 | 00-393-1169 | 28602 ( SHAPE, DAY, MARITIME ) |

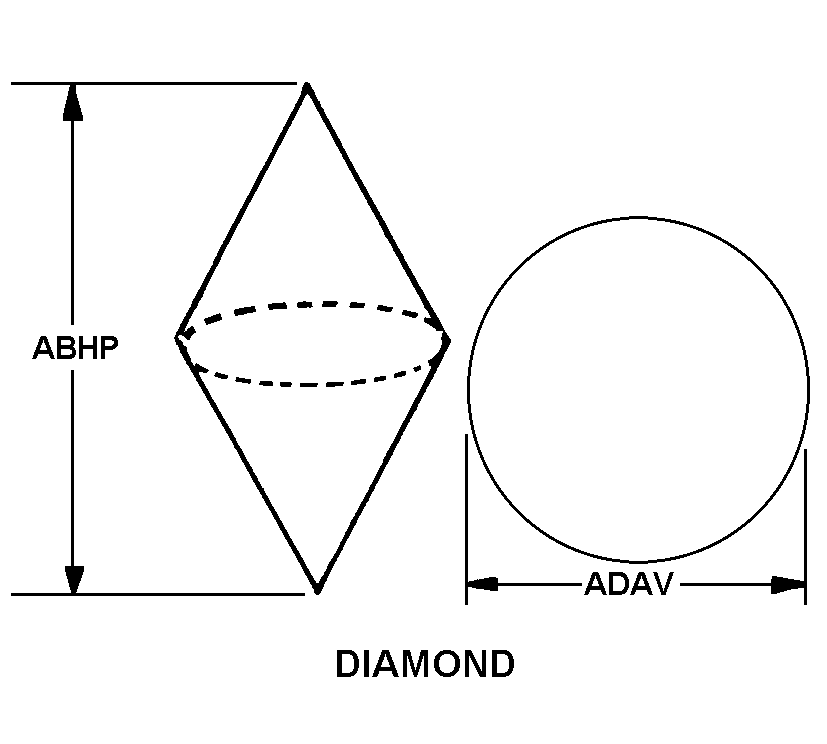

REFERENCE DRAWINGS & PICTURES
DIAMOND
Cross Reference | NSN 8345-00-393-1169
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DB-2430 | 91144 | DELGROSSO BROS INC |
Technical Data | NSN 8345-00-393-1169
| Characteristic | Specifications |
|---|---|
| FIBER MATERIAL | COTTON |
| CLOTH NAME | DUCK |
| STYLE DESIGNATOR | DIAMOND |
| OVERALL DIAMETER | 2.500 FEET NOMINAL |
| OVERALL LENGTH | 2.500 FEET NOMINAL |
