NSN 8115-01-123-0802
Part Details | SMALL PARTS BOX
8115-01-123-0802 A box usually rectangular in shape and having a cover. It may be compartmental and is designed specifically for the protection and/or local storage of small items. Do not use if a more specific name applies. See also BOX (3), TOTE.
Alternate Parts: VD19200021132, VD192-0002-1132, 8115-01-123-0802, 01-123-0802, 8115011230802, 011230802
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | DEC 05, 1981 | 01-123-0802 | 30093 ( BOX, SMALL PARTS ) |
REFERENCE DRAWINGS & PICTURES

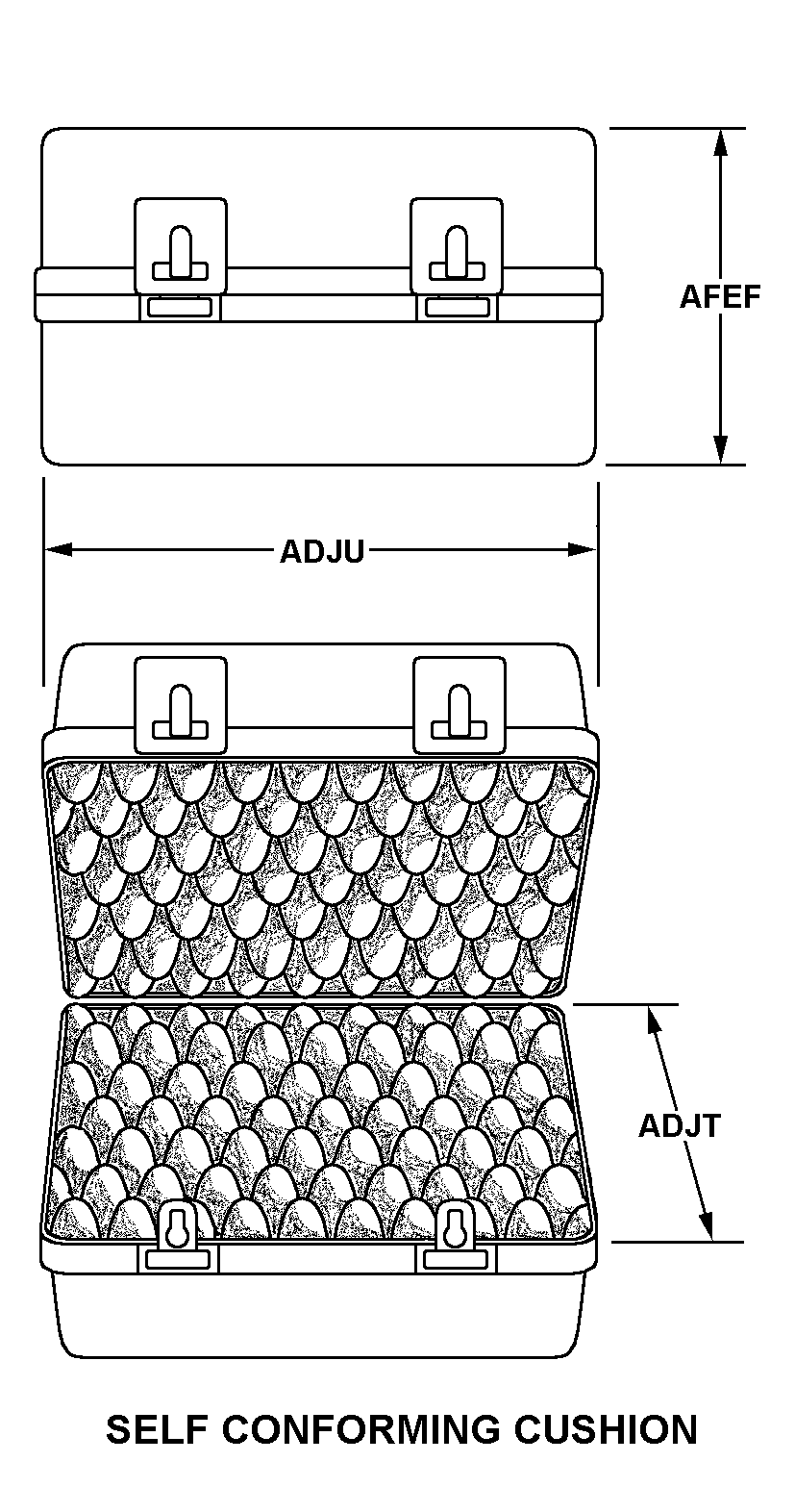

SELF CONFORMING CUSHION
Cross Reference | NSN 8115-01-123-0802
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| VD192-0002-1132 | 51021 | MELMAT, INC. |
Technical Data | NSN 8115-01-123-0802
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SELF CONFORMING CUSHION |
| INSIDE LENGTH | 11.000 INCHES NOMINAL |
| INSIDE WIDTH | 3.000 INCHES NOMINAL |
| MATERIAL | PLASTIC POLYETHYLENE TEREPHTHALATE |
| ASSEMBLY FORM | SET-UP |
| CLOSURE METHOD | HINGED SIDE |
| CLOSURE FASTENING TYPE | CATCH, CLAMPING |
