NSN 8115-00-609-4499
Part Details | WOOD BOX TOP-BOTTOM
8115-00-609-4499 A component unit of an unassembled box and composed of one or more pieces of lumber. It is interchangeable as a top or bottom section.
Alternate Parts: 8115006094499, 8115-00-609-4499, 8115-00-609-4499, 00-609-4499, 8115006094499, 006094499
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 81 | JAN 30, 1975 | 00-609-4499 | 05059 ( BOX TOP-BOTTOM, WOOD ) |
REFERENCE DRAWINGS & PICTURES

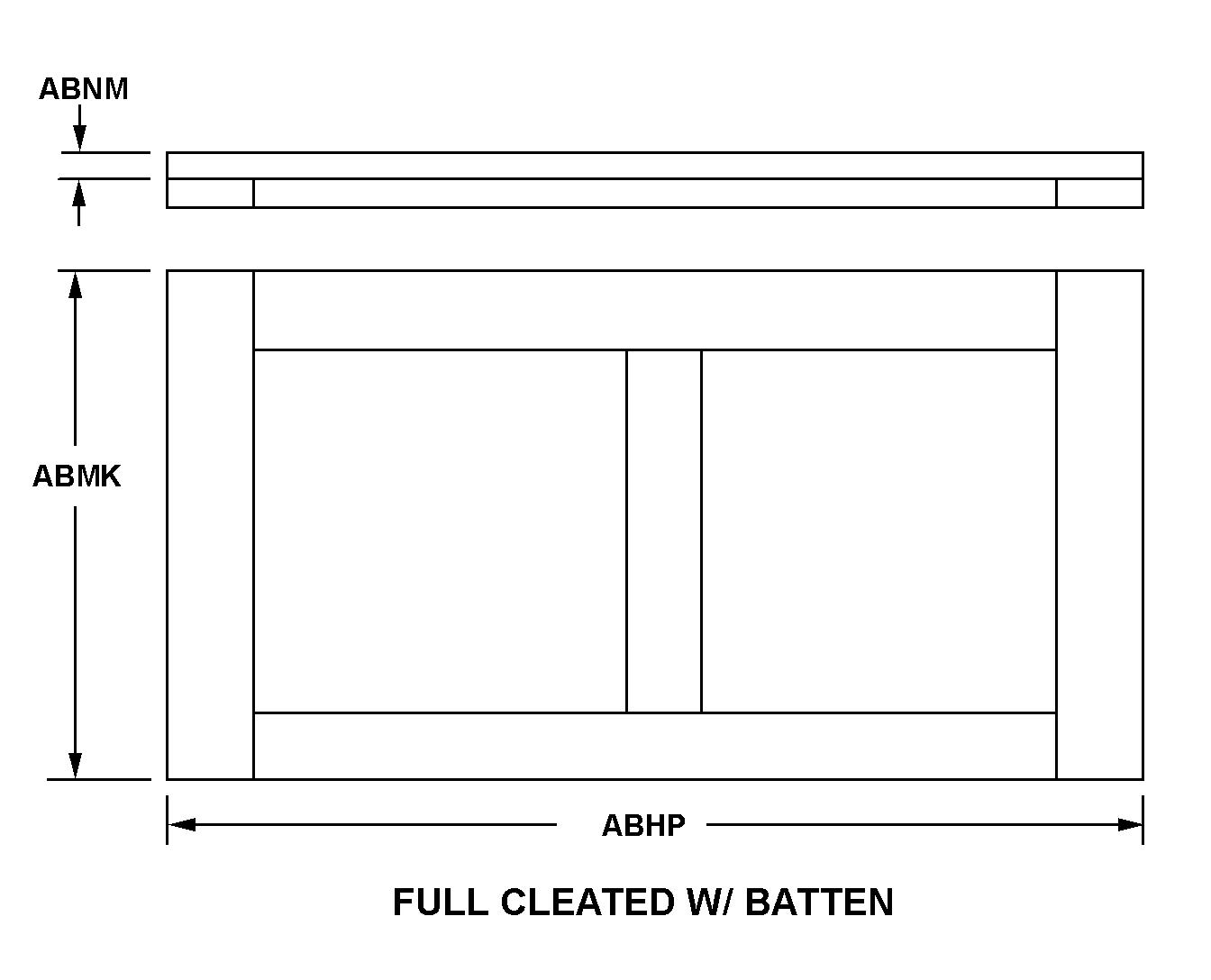

FULL CLEATED W/BATTEN
Cross Reference | NSN 8115-00-609-4499
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8115-00-609-4499 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 8115-00-609-4499
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FULL CLEATED W/BATTEN |
| OVERALL LENGTH | 145.000 INCHES NOMINAL |
| OVERALL WIDTH | 36.500 INCHES NOMINAL |
| THICKNESS | 0.750 INCHES NOMINAL |
