NSN 8020-00-600-5000
Part Details | ARTIST'S BRUSH
8020-00-600-5000 A brush primarily designed for art, striping, lettering, sign writing, show card writing and/or marking use.
Alternate Parts: 3661300, 3661-300, MILB16655, MIL-B-16655, MS16840, 3661300, 3661-300, 15103, 1510-3, 8020-00-600-5000, 00-600-5000, 8020006005000, 006005000
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 80 | JAN 01, 1963 | 00-600-5000 | 16881 ( BRUSH, ARTIST'S ) |

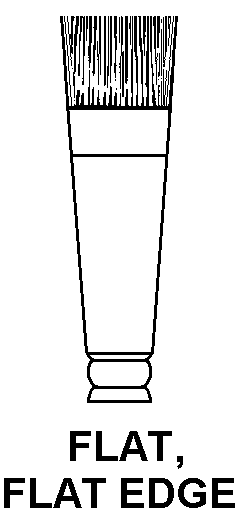

REFERENCE DRAWINGS & PICTURES
FLAT, FLAT EDGE
Cross Reference | NSN 8020-00-600-5000
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3661-300 | 72925 | GRUMBACHER M INC |
| MIL-B-16655 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MS16840 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 3661-300 | 7F555 | MILLER PAINT CO |
| 1510-3 | 1M4C5 | SPECTRUM PAINT APPLICATOR CORP |
Technical Data | NSN 8020-00-600-5000
| Characteristic | Specifications |
|---|---|
| FERRULE MATERIAL | METAL |
| STOCK MATERIAL | HAIR, CAMEL |
| STOCK MATERIAL TYPE | ANY ACCEPTABLE |
| STYLE DESIGNATOR | FLAT, FLAT EDGE |
| STOCK EXPOSED LENGTH | 1.375 INCHES NOMINAL |
| STOCK WIDTH AT FERRULE | 3.000 INCHES NOMINAL |
| HANDLE | FURNISHED |
