NSN 7920-00-543-7728
Part Details | ACID SWABBING BRUSH
7920-00-543-7728
Alternate Parts: AA289, A-A-289, HB643, H-B-643, 7920005437728, 7920-00-543-7728, HB643 TY1CL1, H-B-643 TY1CL1, 7920-00-543-7728, 00-543-7728, 7920005437728, 005437728
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 79 | JAN 01, 1963 | 00-543-7728 | 04822 ( BRUSH, ACID SWABBING ) |
REFERENCE DRAWINGS & PICTURES

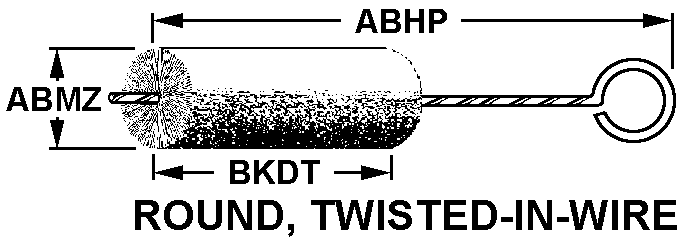

ROUND, TWISTED-IN-WIRE
Cross Reference | NSN 7920-00-543-7728
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-289 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTIONPROMULGATED BY GENERAL SERVICES |
| H-B-643 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 7920-00-543-7728 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| H-B-643 TY1CL1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 7920-00-543-7728
| Characteristic | Specifications |
|---|---|
| BRUSH PART MATERIAL | BRISTLE |
| STYLE DESIGNATOR | ROUND, TWISTED-IN-WIRE |
| OVERALL LENGTH | 8.250 INCHES NOMINAL |
| DIAMETER | 0.438 INCHES NOMINAL |
| BRUSH PART LENGTH | 2.875 INCHES NOMINAL |
| SPECIAL FEATURES | MADE FROM 0.052" DIA., CORROSION RESISTANT WIRE |
