NSN 7105-00-964-6823
Part Details | STEP STOOL
7105-00-964-6823 A stool having a stationary top mounted on a nonfolding base, and having two or more steps.
Alternate Parts: AAS697, AA-S-697, AAS697 CL1, AA-S-697 CL1, 7105-00-964-6823, 00-964-6823, 7105009646823, 009646823
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 71 | JAN 01, 1963 | 00-964-6823 | 11329 ( STOOL, STEP ) |
REFERENCE DRAWINGS & PICTURES

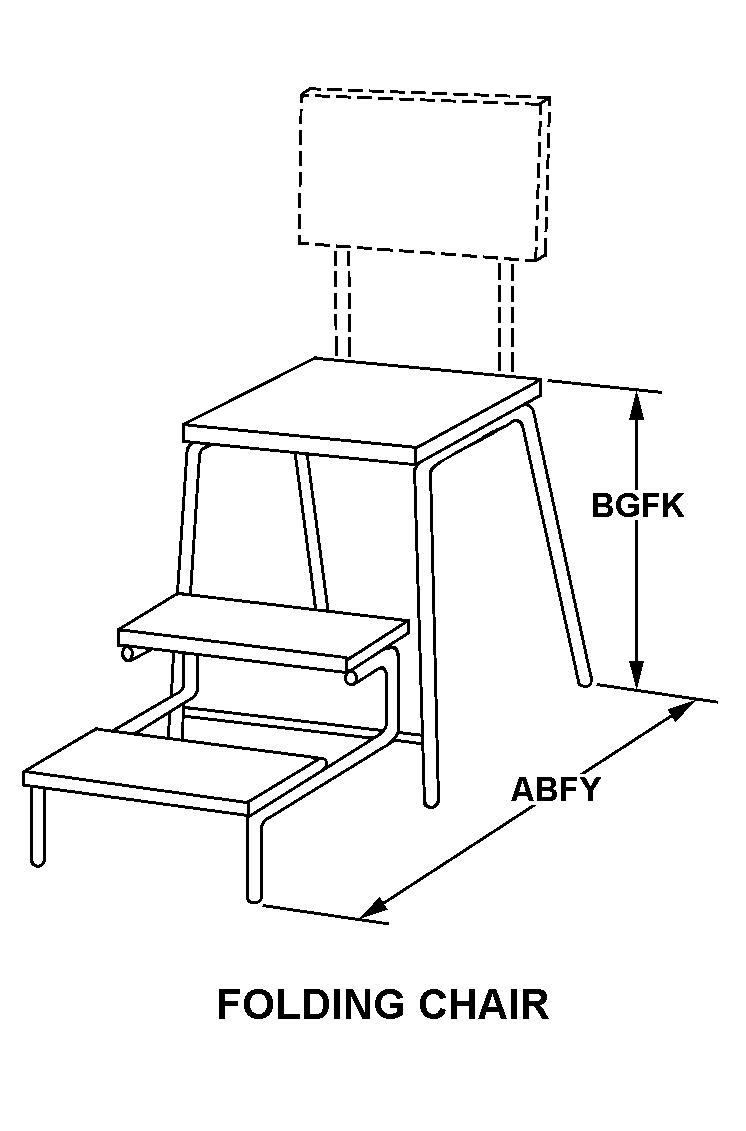

FOLDING CHAIR
Cross Reference | NSN 7105-00-964-6823
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AA-S-697 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| AA-S-697 CL1 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 7105-00-964-6823
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A FOLDING CHAIR |
| OVERALL DEPTH | 20.500 INCHES NOMINAL |
| SEAT TOP HEIGHT FROM FLOOR | 24.000 INCHES NOMINAL |
| BASE END FEATURE | BR ANY ACCEPTABLE |
| LEG QUANTITY | 6 |
| LEG CROSS-SECTIONAL SHAPE | PL ANY ACCEPTABLE |
| MATERIAL AND LOCATION | STEEL FRAME |
| COLOR AND LOCATION | BROWN, REDDISH FRAME |
| SPECIAL FEATURES | W/TWO FOLDING STEPS; W/FOLDING BACK |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS |
