NSN 7105-00-852-0162
Part Details | SOFA SECTION
7105-00-852-0162 An item of upholstered furniture specifically designed for use with other units to form a SOFA. It may have a right arm, a left arm or no arms and may have removable cushions. Excludes SOFA; CHAIR,EASY; and SETTEE,SECTION.
Alternate Parts: AAH570, AA-H-570, AAH570 CL2TY5MEB, AA-H-570 CL2TY5MEB, 7105-00-852-0162, 00-852-0162, 7105008520162, 008520162
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 71 | JAN 01, 1962 | 00-852-0162 | 52829 ( SOFA SECTION ) |
REFERENCE DRAWINGS & PICTURES

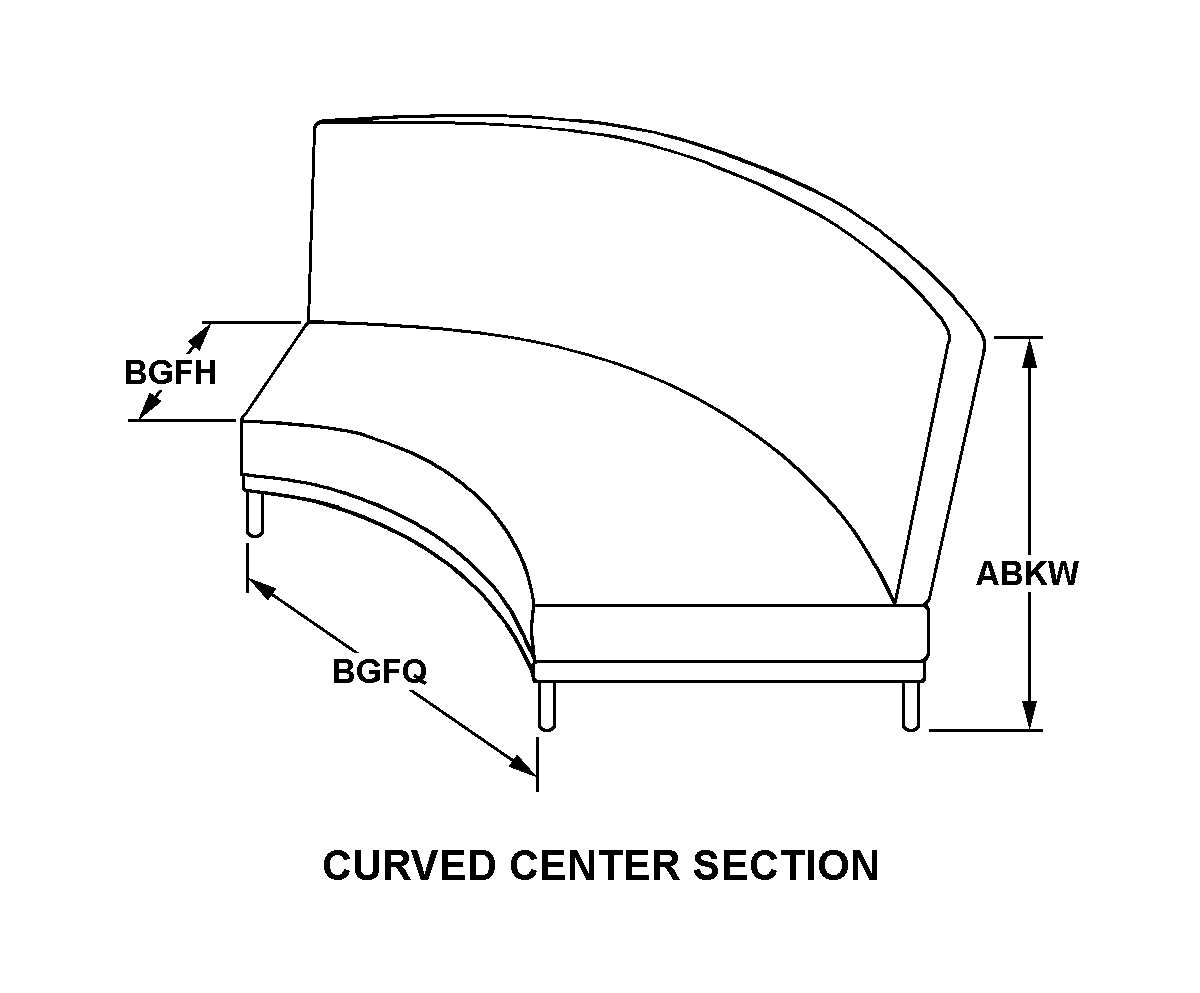

CURVED CENTER SECTION
Cross Reference | NSN 7105-00-852-0162
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AA-H-570 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| AA-H-570 CL2TY5MEB | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 7105-00-852-0162
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CURVED CENTER SECTION |
| OVERALL HEIGHT | 30.500 INCHES NOMINAL |
| SEAT DEPTH | 22.000 INCHES NOMINAL |
| BASE TYPE | LEG |
| LEG QUANTITY | 5 |
| MATERIAL AND LOCATION | RUBBER FOAM CUSHION PADDING AND WOOD BASE |
| COLOR AND LOCATION | MAPLE BASE |
| SURFACE TREATMENT AND LOCATION | LACQUER BASE |
| DESIGN FORM | SECTIONAL |
| BACK AND UPHOLSTERY DESIGN | SOLID UPHOLSTERED PLAIN |
| CUSHION TYPE/LOCATION AND QUANTITY | B1$C1 |
| SPECIAL FEATURES | W/METAL LEG PROTECTORS |
| NONDEFINITIVE SPEC/STD DATA | 2 CLASS AND 5 TYPE AND B METHOD |
