NSN 6730-00-982-4490
Part Details | PHOTOGRAPHIC PROJECTION VIEWER-PRINTER
6730-00-982-4490 An item designed for viewing microfilm which magnifies and presents on an integrally mounted screen a right reading image. It is equipped with a printing and developing mechanism which delivers a permanent enlarged copy of the microfilm upon activation of the reproducing mechanism.
Alternate Parts: PES, 6730-00-982-4490, 00-982-4490, 6730009824490, 009824490
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 67 | JAN 01, 1962 | 00-982-4490 | 21930 ( VIEWER-PRINTER, PROJECTION, PHOTOGRAPHIC ) |
REFERENCE DRAWINGS & PICTURES

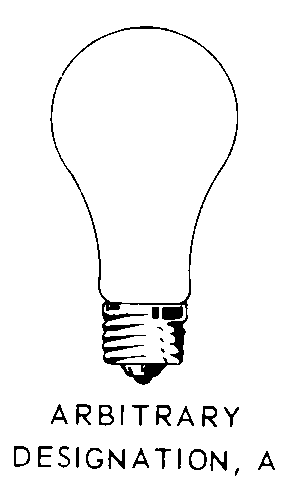

ARBITRARY DESIGNATION, A

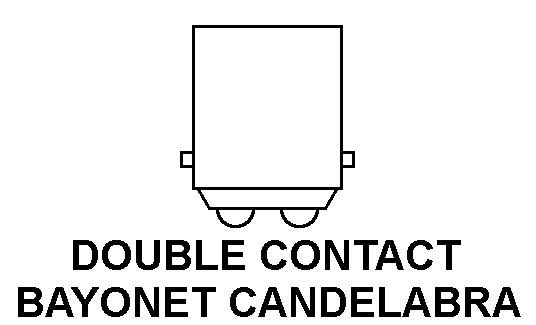

DOUBLE CONTACT BAYONET CANDELABRA
Cross Reference | NSN 6730-00-982-4490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PES | 19139 | EASTMAN KODAK COMPANYDBA KODAK |
Technical Data | NSN 6730-00-982-4490
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | TABLE |
| FILM ACCOMMODATION TYPE | D ANY ACCEPTABLE |
| ACCOMMODATED FILM WIDTH | 16.0 MILLIMETERS NOMINAL |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 117.0 |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |
| OVERALL LENGTH | 28.500 INCHES NOMINAL |
| OVERALL HEIGHT | 31.000 INCHES NOMINAL |
| OVERALL WIDTH | 16.000 INCHES NOMINAL |
| LAMP TYPE | F ANY ACCEPTABLE |
| LAMP QUANTITY | 1 |
| LAMP BASE STYLE | DOUBLE CONTACT BAYONET CANDELABRA |
| LAMP BULB SHAPE STYLE | 6 ARBITRARY DESIGNATION, A |
| LAMP BULB SIZE DESIGNATOR | G-16-1/2 |
| LAMP | INCLUDED |
| LAMP WATTAGE RATING IN WATTS | 100.0 |
| DESIGN CURRENT RATING IN AMPS | 0.850 NOMINAL |
| CIRCUIT VOLTAGE RATING IN VOLTS | 32.0 NOMINAL |
| PRINT SIZE | 8-1/2 IN. BY 11 IN. |
| PRINTING PROCESS FOR WHICH DESIGNED | LM ANY ACCEPTABLE |
| FURNISHED ITEMS AND QUANTITY | LAMP GE SPECIAL 124 |
| SPECIAL FEATURES | DOUBLE CONTACT BAYONET LAMP BASE |
