NSN 6710-01-585-0714
Part Details | MOTION PICTURE CAMERA
6710-01-585-0714 A photographic device used for taking silent and/or sound motion pictures. It consists of a light-tight chamber designed to produce a sequential series of pictures by means of a continuous or intermittent automatic film feed mechanism. This mechanism is so arranged, geared and timed that as the film for each frame is positioned, the light for each exposure is automatically controlled. It includes an electric or spring wound motor(s), taking lens(es), takeup reel or spool, and magazine(s). It may include a lens cover, carrying case, strap and/or handle. Excludes cameras with sound recording equipment, film, tripod, or stand, accessory lighting equipment and external power supply. for cameras with sound recording equipment, see CAMERA SET, MOTION PICTURE.
Alternate Parts: LS903PB, LS903P-B, 6710-01-585-0714, 01-585-0714, 6710015850714, 015850714
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 67 | MAY 14, 2010 | 01-585-0714 | 02706 ( CAMERA, MOTION PICTURE ) |
REFERENCE DRAWINGS & PICTURES

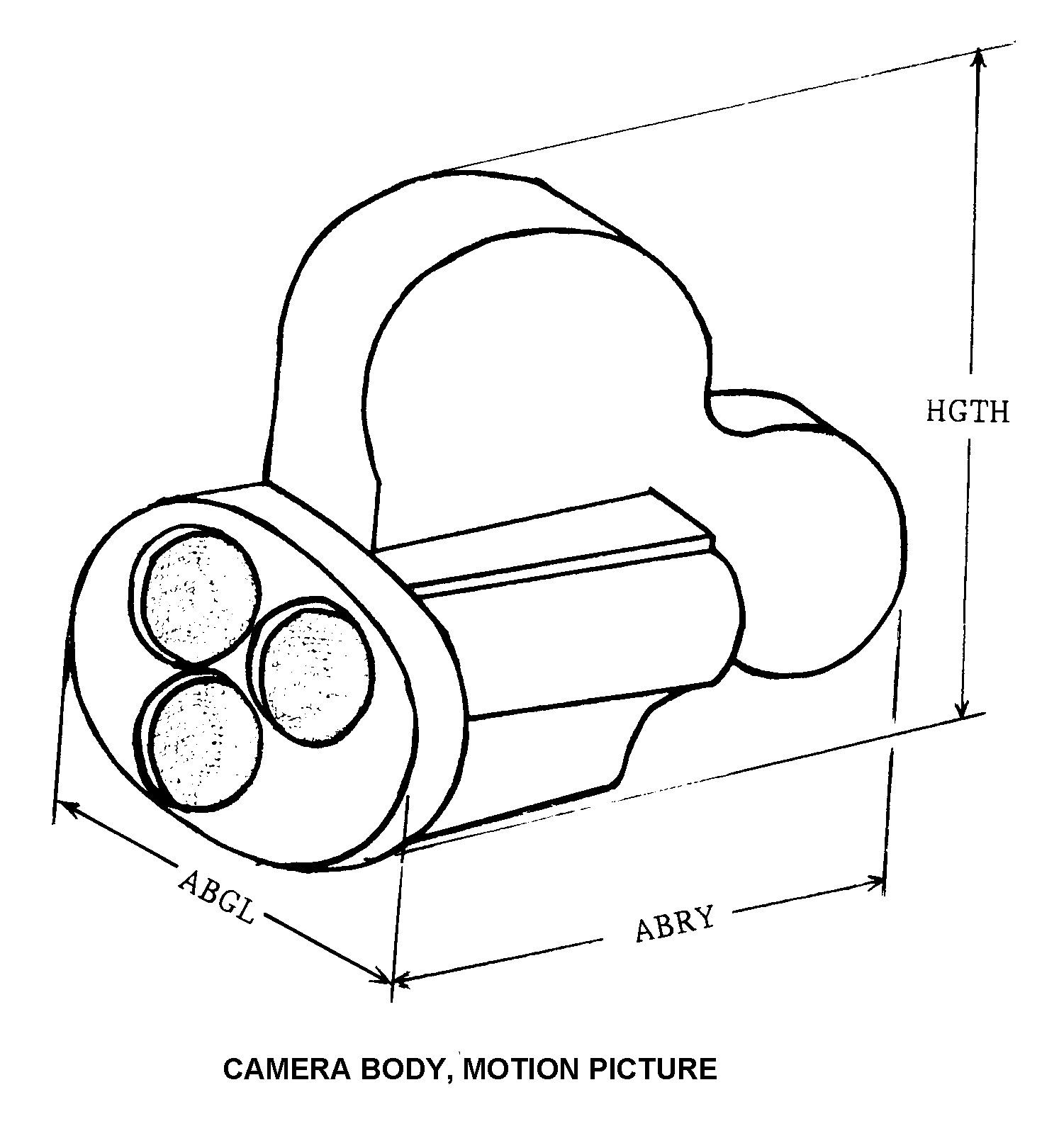

CAMERA BODY, MOTION PICTURE
Cross Reference | NSN 6710-01-585-0714
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LS903P-B | 0WBG2 | LG ELECTRONICS U.S.A. INC. |
Technical Data | NSN 6710-01-585-0714
| Characteristic | Specifications |
|---|---|
| CAMERA TYPE | HIGH SPEED AND SPECIAL PURPOSE |
| STYLE DESIGNATOR | CAMERA BODY, MOTION PICTURE |
| WIDTH | 68.0 MILLIMETERS NOMINAL |
| LENGTH | 122.0 MILLIMETERS NOMINAL |
| HEIGHT | 61.5 MILLIMETERS NOMINAL |
| SINGLE FRAME RELEASE | INCLUDED |
| DRIVE TYPE | EXTERNAL AND INTEGRAL |
| DRIVE MOTOR VOLTAGE RATING | 24.0 ALTERNATING CURRENT AND 12.0 DIRECT CURRENT |
| SPECIAL FEATURES | LG ELECTRONICS;SIGNAL SYSTEM PAL;LENS-C/CS MOUNT;SIGNAL PROCESS LG XDI DSP;SYNC SYSTEM INTERNAL/EXTERNAL (LINE LOCK);TOTAL/EFFECTIVE PIXELS 470K;IMAGE DEVICE 1/3INCH INTERLINE COLOR CCD;RESOLUTION 570 TV LINES;700 TV LINES B/W;S/N RATION MORE THAN 52DB-AGC OFF;VIDEO OUTPUT SIGNAL 1VP-P COMPOSIT 75 OHM |
| SUPPLEMENTARY FEATURES | DAY AND NIGHT ICR D&N;WDR 60DB;COMMON 3D-DNR;AUTO BALANCE;MOTION DETECTION 4 AREAS;PRIVACY ZONE MASKING 8 ZONES;OSD DISPLAY 7 LANGUAGES;DIGITAL ZOOM X8 BUILT IN PAN/TILT;HSBLC-O;WEIGHT 420G |
| END ITEM IDENTIFICATION | A/V EQUIPMENT |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | C/CS MOUNT CAMERA |
