NSN 6695-00-320-8312
Part Details | SYMBOL INDICATING INDICATOR
6695-00-320-8312 An electrically operated indicator, consisting principally of a cylindrical rotating card, or the like, which exhibits symbols or markings before a single window in a case. Excludes indicators having graduated scale dials. Also excludes INDICATOR, DIGITAL DISPLAY; INDICATOR, POSITION; and INDICATOR (as modified).
Alternate Parts: 3750008, 10859, 108-59, 9A34, 6695-00-320-8312, 00-320-8312, 6695003208312, 003208312
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | NOV 11, 1973 | 00-320-8312 | 20814 ( INDICATOR, SYMBOL INDICATING ) |
REFERENCE DRAWINGS & PICTURES

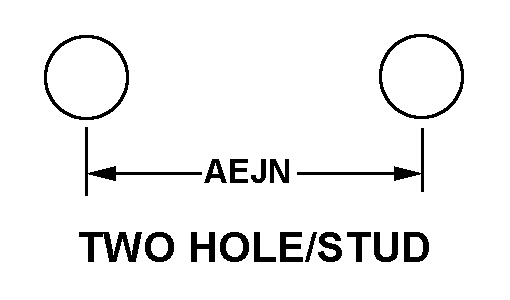

TWO HOLE/STUD
Cross Reference | NSN 6695-00-320-8312
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3750008 | 09959 | AIRCRAFT INSTRUMENTS COMPANY |
| 108-59 | 02374 | APPLIED MAGNETICS INC |
| 9A34 | 82686 | TRANSICOIL LLCDBA ADS/TRANSICOIL |
Technical Data | NSN 6695-00-320-8312
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | STEEL |
| PRESENTATION TYPE | DRUM DIAL AND WINDOW |
| MARKING COLOR SPECIFIC USE | POWER-OFF SIGNAL AND POWER-ON SIGNAL |
| CURRENT TYPE | DC |
| DC VOLTAGE RATING | 22.0 VOLTS MINIMUM AND 30.0 VOLTS MAXIMUM |
| CONTACT QUANTITY | 3 |
| CONTACT TYPE | TERMINAL LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SLOTTED HOLE |
| MOUNTING SLOT LENGTH | 0.445 INCHES NOMINAL |
| MOUNTING SLOT WIDTH | 0.125 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | TWO HOLE/STUD |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.686 INCHES NOMINAL |
| LENGTH | 1.156 INCHES NOMINAL |
| DIAMETER | 0.375 INCHES NOMINAL |
| HEIGHT | 0.380 INCHES NOMINAL |
| DIAL OUTSIDE DIAMETER | 0.385 INCHES NOMINAL |
| SPECIAL FEATURES | OPERATING TIME 0.1 SECOND OR LESS;COIL RESISTANCE 750 OHMS;INDICATOR CASE TIN-PLATED FOR CORROSION RESISTANCE;OPERATINIG TEMP RANGE MINUS 55 DEG C TO 90 DEG C;MINIMUM INSULTATION RESISTANCE 20 MEG. OHMS AT 500 VOLTS DC WINDING TO CASE;HIGH POTENTIAL REQUIREMENTS-EACH UNIT CAN WITHSTAND 500 VOLTS ACAT 60 HZ P.S. FOR 15 SECONDS |
| END ITEM IDENTIFICATION | NSNS 6680-00-593-3306 AND 6680-00-790-0082 LIQUID OXYGEN INDICATOR SETS TECH ORDER 15X4-3-1-114 |
| SUPPLEMENTARY FEATURES | INDICATOR ENERGIZED POSITION BACKGROUND POSITION LUSTERLESS BLACK COLORNO. 37038;INDICATOR DE-ENERGIZED POSITION (OFF) CHARACTERS LUSTERLESS WHITE COLOR NO. 37875 ON RED BACKGROUND COLOR NO. 31158;WORD OFF IS 0.094 IN. HIGHNOMINAL;BACK SURFACE TO BE FREE OF PAINT |
