NSN 6685-00-507-6937
Part Details | BIMETALLIC SELF-INDICATING THERMOMETER
6685-00-507-6937 A thermometer which has a bimetallic substance, whose measurable physical properties, or one of them, change with variation in temperature and self-indicate the temperature to a division or number on a graduated scale(s).
Alternate Parts: SML000757, MODEL303IN. DIAL72IN. STEM, MODEL-30-3IN. DIAL/72IN. STEM, GT300R, GT300R, 6685-00-507-6937, 00-507-6937, 6685005076937, 005076937
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JUL 23, 1974 | 00-507-6937 | 07329 ( THERMOMETER, SELF-INDICATING, BIMETALLIC ) |
REFERENCE DRAWINGS & PICTURES

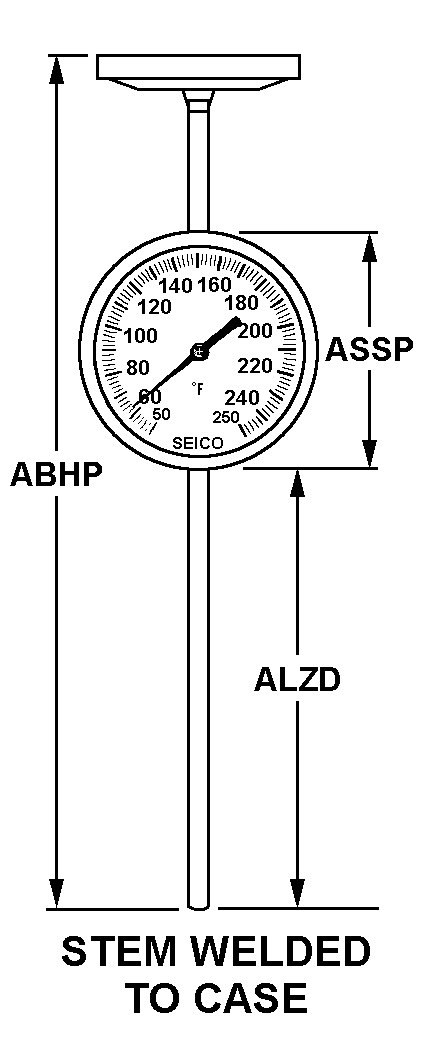

STEM WELDED TO CASE
Cross Reference | NSN 6685-00-507-6937
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SML000757 | Z0GY5 | BAE SYSTEMS AUSTRALIA PTY LTDDBA BAE SYSTEMS |
| MODEL-30-3IN. DIAL/72IN. STEM | 30720 | BECTON DICKINSON AND CO CANADA LTD |
| GT300R | 23249 | GERMANOW-SIMON CORPORATIONDBA G-S PLASTIC OPTICS |
| GT300R | 81405 | TEL-TRU, INC.DBA TEL-TRU MANUFACTURING COMPANY |
Technical Data | NSN 6685-00-507-6937
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | DIAL |
| SCALE MEASUREMENT RANGE | +0.000 TO +140.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | STEM WELDED TO CASE |
| DIAL DIAMETER | 3.000 INCHES NOMINAL |
| OVERALL LENGTH | 73.374 INCHES NOMINAL |
| STEM LENGTH | 72.000 INCHES NOMINAL |
| DESIGN TYPE | FLUCTUATING |
