Part Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-00-464-6929 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Alternate Parts: 2CAC06500AGA002, 2-CAC-06500-AGA-002, 2 12 57DFFM30180, 2 1-2 57DFFM30-180, 0584C283924, 0584C28392-4, 67A81B1224, 67A81B122-4, C244234, C24423-4, 0584C283924, 0584C28392-4, 6685-00-464-6929, 00-464-6929, 6685004646929, 004646929
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | MAY 21, 1969 | 00-464-6929 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
REFERENCE DRAWINGS & PICTURES
PLAIN BULB W/RIGID EXTENSION

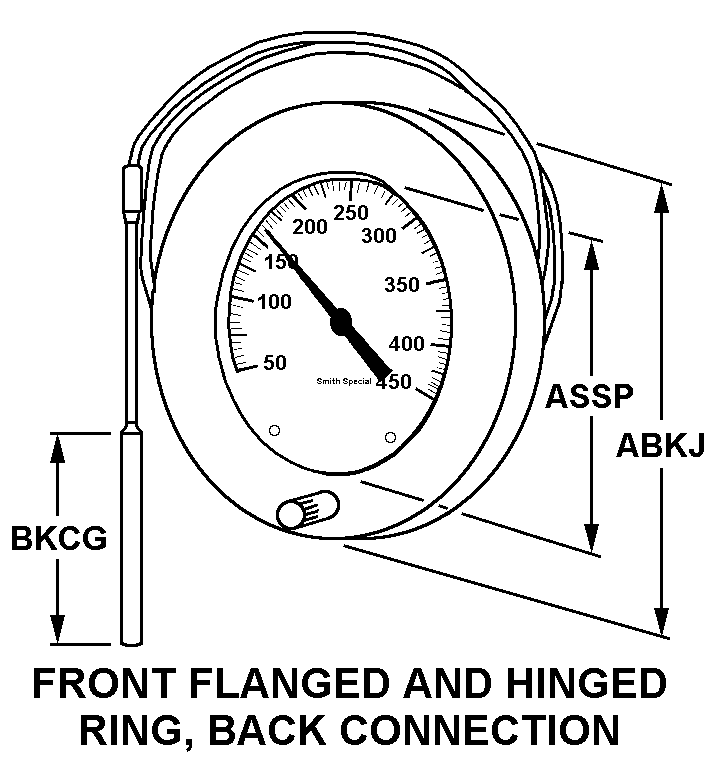

FRONT FLANGED AND HINGED RING, BACK CONNECTION
Cross Reference | NSN 6685-00-464-6929
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-CAC-06500-AGA-002 | 38508 | DESCO CORPMARSH BELLOFRAM DIV |
| 2 1-2 57DFFM30-180 | 38508 | DESCO CORPMARSH BELLOFRAM DIV |
| 0584C28392-4 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| 67A81B122-4 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| C24423-4 | 53047 | RHEEM MFG COAIR CONDITIONING DIV |
| 0584C28392-4 | 53047 | RHEEM MFG COAIR CONDITIONING DIV |
Technical Data | NSN 6685-00-464-6929
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | CONCENTRIC DIAL |
| SCALE MEASUREMENT RANGE | +30.000 TO +180.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | FRONT FLANGED AND HINGED RING, BACK CONNECTION |
| BULB TIP LENGTH | 2.812 INCHES NOMINAL |
| CASE DIAMETER | 3.469 INCHES NOMINAL |
| DIAL DIAMETER | 2.500 INCHES NOMINAL |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| INDICATOR CONNECTION METHOD | FLEXIBLE TUBE |
| BULB QUANTITY | 1 |
| BULB STYLE | PLAIN BULB W/RIGID EXTENSION |
| ACTIVE PORTION DIAMETER | 0.375 INCHES NOMINAL |
| BULB OVERALL LENGTH | 3.500 INCHES NOMINAL |
| FLEXIBLE TUBE LENGTH | 72.000 INCHES NOMINAL |
