Part Details | CAPILLARY TUBE AND BULB INDICATING THERMOMETER
6685-00-023-1734 A thermometer which employs a confined substance, whose measurable physical properties or one of them varies with a change in temperatrue and this energy transmitted into mechanical movement to indicate the temperature. For indoor/outdoor application, see THERMOMETER, SELF-INDICATING, LIQUID IN GLASS.
Alternate Parts: 57DFM, 2CAC05500AFG001, 2-CAC-05500-AFG-001, 1584A44, K25240003 FAHRENHEIT, K25240-003 FAHRENHEIT, 6685-00-023-1734, 00-023-1734, 6685000231734, 000231734
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1961 | 00-023-1734 | 07419 ( THERMOMETER, INDICATING, CAPILLARY TUBE AND BULB ) |
REFERENCE DRAWINGS & PICTURES
PLAIN BULB

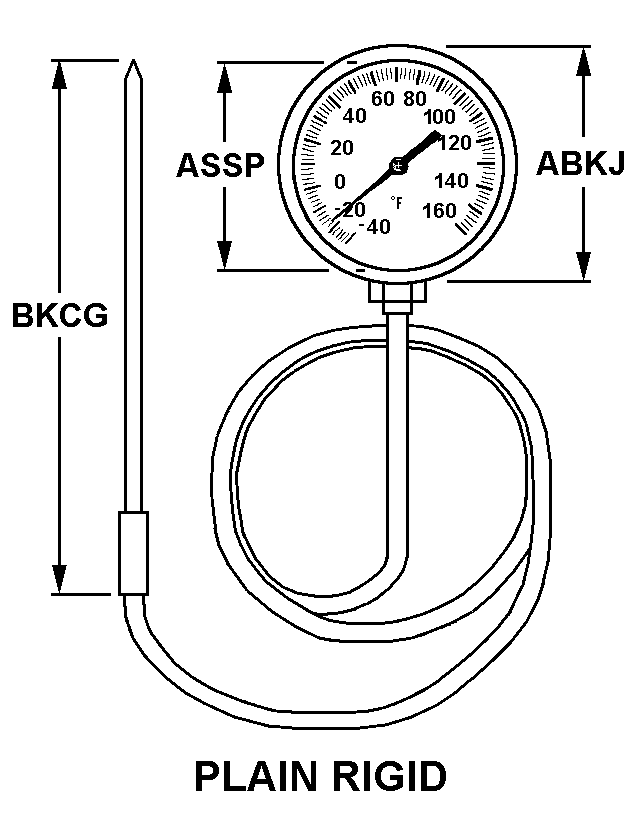

PLAIN RIGID
Cross Reference | NSN 6685-00-023-1734
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 57DFM | 38508 | DESCO CORPMARSH BELLOFRAM DIV |
| 2-CAC-05500-AFG-001 | 38508 | DESCO CORPMARSH BELLOFRAM DIV |
| 1584A44 | 78062 | SARGENT AEROSPACE & DEFENSE, LLCDBA SARGENT CONTROLS & AEROSPACE |
| K25240-003 FAHRENHEIT | 1W7V8 | TEMPCO INCDBA MARSHALLTOWN TEMPCO |
Technical Data | NSN 6685-00-023-1734
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | CONCENTRIC DIAL |
| SCALE MEASUREMENT RANGE | +30.000 TO +180.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | PLAIN RIGID |
| POINTER/PEN TYPE AND QUANTITY | 1 INDICATING SINGLE |
| INDICATOR CONNECTION METHOD | RIGID STEM |
| BULB TYPE | PLAIN RIGID |
| BULB QUANTITY | 1 |
| BULB STYLE | PLAIN BULB |
| BULB OVERALL LENGTH | 3.000 INCHES NOMINAL |
| BULB CONNECTION TYPE | THREADED |
| FLEXIBLE TUBE LENGTH | 36.000 INCHES NOMINAL |
| ACTUATING MEDIUM | VAPOR TENSION |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SURFACE |
| CASE TYPE | VAPORPROOF |
| END ITEM IDENTIFICATION | POSEIDON MATERIAL; TRIDENT MATERIAL |
