NSN 6685-00-019-0043
Part Details | SELF-INDICATING THERMOMETER
6685-00-019-0043 An item that has confined liquid whose physical property(ies) changes with variation in temperature and indicates the temperature to a division or number on a graduated scale(s). May include flexible tubing (capillary) for indoor/outdoor applications. Excludes: THERMOMETER, CLINICAL, HUMAN.
Alternate Parts: 12EJ31012, 6685-00-019-0043, 00-019-0043, 6685000190043, 000190043
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | APR 25, 1967 | 00-019-0043 | 42787 ( THERMOMETER, SELF-INDICATING ) |
REFERENCE DRAWINGS & PICTURES

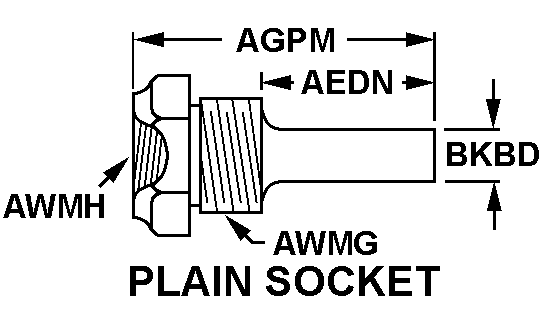

PLAIN SOCKET

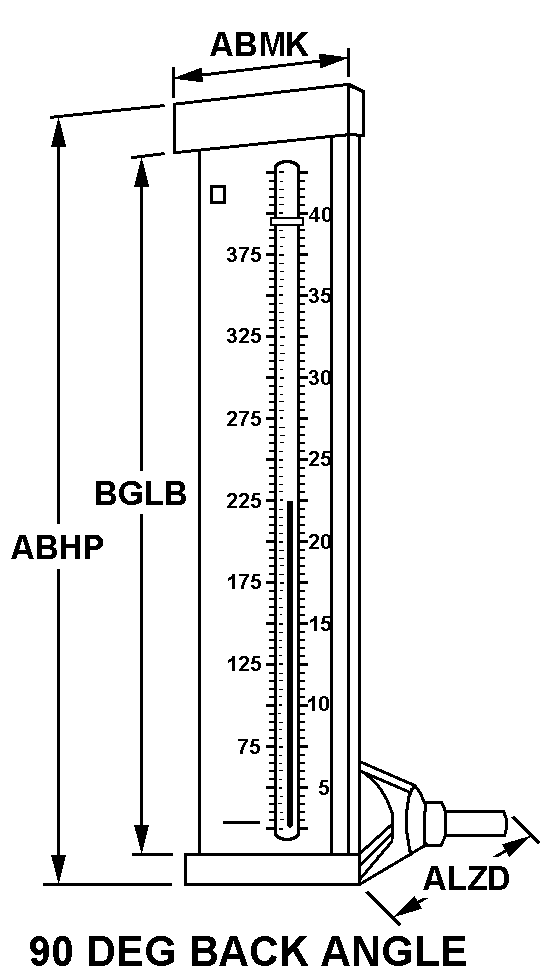

90 DEG BACK ANGLE
Cross Reference | NSN 6685-00-019-0043
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12EJ31012 | 59310 | ABB KENT-TAYLOR INC |
Technical Data | NSN 6685-00-019-0043
| Characteristic | Specifications |
|---|---|
| SCALE TYPE | METAL |
| SCALE MEASUREMENT RANGE | +50.000 TO +400.000 DEG FAHRENHEIT |
| STYLE DESIGNATOR | 90 DEG BACK ANGLE |
| OVERALL LENGTH | 9.000 INCHES NOMINAL |
| STEM LENGTH | 3.500 INCHES NOMINAL |
| SEPARABLE SOCKET STYLE | PLAIN SOCKET |
| BULB TIP OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| SOCKET OVERALL LENGTH | 4.375 INCHES NOMINAL |
| TIP LENGTH | 2.688 INCHES NOMINAL |
| EXTERNAL THREAD SIZE | 3/4 IN. NPT |
| INTERNAL THREAD SIZE | 3/4 IN. NPT |
| ACTUATING MEDIUM | MERCURY |
| DESIGN TYPE | FLUCTUATING |
| IMMERSION LENGTH | 3.000 INCHES NOMINAL |
| FEATURES PROVIDED | PROTECTIVE GLASS/PLASTIC |
| SCALE INSCRIPTION/BACKGROUND COLOR | BLACK MARKING ON SILVER BACKGROUND |
| SCALE SMALLEST INCREMENT | 2.0 DEG FAHRENHEIT |
