NSN 6680-00-100-4504
Part Details | LIQUID SIGHT INDICATOR
6680-00-100-4504 An item so designed to have a portion or all of its body transparent to permit the visual examination of the amount of liquid in a pressure vessel, boiler, evaporator, still, processing tank, reservoir, pipe tubing line, and the like, and/or to determine the flow to a lubricated part. It may also be provided with an element that changes colors to indicate changes in moisture content. The item may have a means for refilling. Excludes INDICATOR, LIQUID QUANTITY and INDICATOR, RATE OF FLOW.
Alternate Parts: A33413CL, A-3341-3CL, 6680-00-100-4504, 00-100-4504, 6680001004504, 001004504
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | DEC 10, 1972 | 00-100-4504 | 03175 ( INDICATOR, SIGHT, LIQUID ) |
REFERENCE DRAWINGS & PICTURES

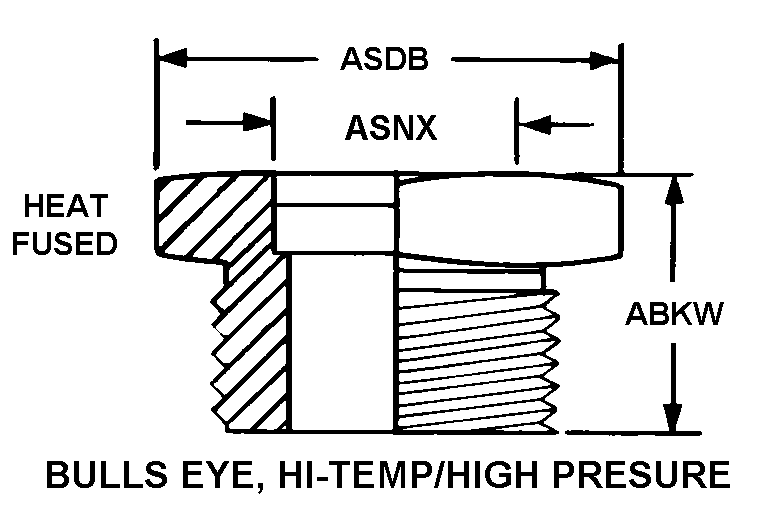

BULLS EYE, HI-TEMP/HIGH PRESSURE
Cross Reference | NSN 6680-00-100-4504
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-3341-3CL | 80885 | OIL-RITE CORPORATION |
Technical Data | NSN 6680-00-100-4504
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| STYLE DESIGNATOR | 4 BULLS EYE, HI-TEMP/HIGH PRESSURE |
| OVERALL LENGTH | 1.375 INCHES NOMINAL |
| OVERALL HEIGHT | 5.500 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 3.000 INCHES NOMINAL |
| SIGHT HEIGHT | 3.000 INCHES NOMINAL |
| MEDIA FOR WHICH DESIGNED | CJ ANY ACCEPTABLE |
| FURNISHED DATA | LIQUID LEVEL |
| DATA FURNISHING METHOD | CLEAR WINDOW |
| MAXIMUM WORKING PRESSURE | 125.0 POUNDS PER SQUARE INCH |
| MAXIMUM TEMP RATING | 225.0 DEG FAHRENHEIT |
| SUPPLEMENTARY FEATURES | SPARROW AIR TO AIR MISSILE |
