NSN 6650-00-155-3673

Part Details | OPTICAL INSTRUMENT PRISM

6650-00-155-3673 A transparent item with at least two polished plane surfaces inclined toward each other, designed for use in optical instruments to reflect and/or refract a beam of light. It may have one or more mirrored surfaces for greater reflection. Includes optical wedges used to divert paths of light by refraction, but to a lesser degree. See also BEAM SPLITTER, OPTICAL INSTRUMENT.

Alternate Parts: 384815PC4, 3000044, 6650-00-155-3673, 00-155-3673, 6650001553673, 001553673

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
66JAN 01, 196300-155-367321879 ( PRISM, OPTICAL INSTRUMENT )
REFERENCE DRAWINGS & PICTURES

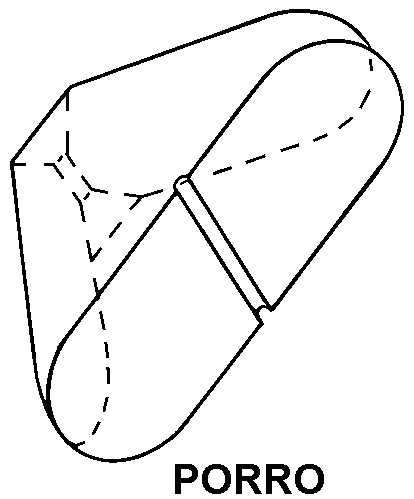

PORRO

PRISM,OPTICAL INSTR | 6650-00-155-3673, 001553673
Cross Reference | NSN 6650-00-155-3673
Part Number Cage Code Manufacturer
384815PC410001NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT
300004410001NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT
Technical Data | NSN 6650-00-155-3673
Characteristic Specifications
STYLE DESIGNATOR PORRO
LIGHT DEVIATION180 DEG
FSC APPLICATION DATAFIRE CONTROL TELESCOPE
