NSN 6650-00-130-9206
Part Details | OPTICAL INSTRUMENT PRISM
6650-00-130-9206 A transparent item with at least two polished plane surfaces inclined toward each other, designed for use in optical instruments to reflect and/or refract a beam of light. It may have one or more mirrored surfaces for greater reflection. Includes optical wedges used to divert paths of light by refraction, but to a lesser degree. See also BEAM SPLITTER, OPTICAL INSTRUMENT.
Alternate Parts: 154825PC13, 154825PC13, 154825PC13, 6650-00-130-9206, 00-130-9206, 6650001309206, 001309206
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-130-9206 | 21879 ( PRISM, OPTICAL INSTRUMENT ) |
REFERENCE DRAWINGS & PICTURES

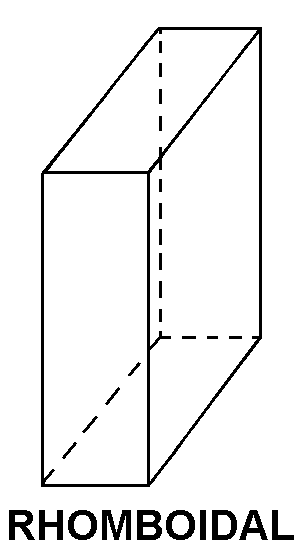

RHOMBOIDAL
Cross Reference | NSN 6650-00-130-9206
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 154825PC13 | 34870 | FJW OPTICAL SYSTEMS, INC. |
| 154825PC13 | 14001 | GRAYCO OPTICAL CORP |
| 154825PC13 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 6650-00-130-9206
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RHOMBOIDAL |
| LIGHT DEVIATION | 49 DEG |
| FSC APPLICATION DATA | FIRE CONTROL TELESCOPE MK 46 |
