NSN 6650-00-010-5187

Part Details | OPTICAL INSTRUMENT LENS

6650-00-010-5187 An unmounted, transparent, color free lens which may be treated with a low reflection coating to increase light transmission. Includes single and compound elements. For items having two plane parallel surfaces, see WINDOW, OPTICAL INSTRUMENT. Excludes RETICLE, OPTICAL INSTRUMENT.

Alternate Parts: SCB599171, SC-B-599171, SCB599171, SC-B-599171, 6650-00-010-5187, 00-010-5187, 6650000105187, 000105187

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
66NOV 01, 196700-010-518721884 ( LENS, OPTICAL INSTRUMENT )
REFERENCE DRAWINGS & PICTURES

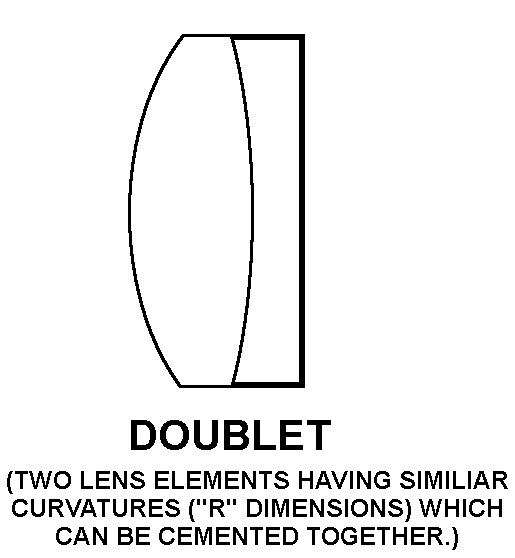

DOUBLET

LENS,OPTICAL INSTRU | 6650-00-010-5187, 000105187
Cross Reference | NSN 6650-00-010-5187
Part Number Cage Code Manufacturer
SC-B-59917191141DAVIDSON OPTRONICS INC.DBA DOI VENTURE
SC-B-59917180063US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS
Technical Data | NSN 6650-00-010-5187
Characteristic Specifications
COMPOUND LENS STYLE DOUBLET
INDIVIDUAL LENS STYLE DOUBLE CONVEX AND DOUBLE CONCAVE
COMPOUND LENS OVERALL AXIAL THICKNESS0.641 INCHES NOMINAL
EQUIVALENT FOCAL LENGTH5.421 INCHES
BACK FOCAL LENGTH5.082 INCHES
FRONT FOCAL LENGTH5.595 INCHES
SPECIAL FEATURESEDGE INKED BLACK
FSC APPLICATION DATANIGHT VISION EQUIP.
