NSN 6640-00-848-6115
Part Details | LABORATORY GLASSWARE GROUND JOINT
6640-00-848-6115 A fitting having either a ground inner member (male) or a ground outer member (female). Inner member items are used to connect with outer member items in order to obtain a tight joint during laboratory procedures.
Alternate Parts: DDG675TYPE2C0MP0SITI0N1GRADEA, 6640-00-848-6115, 00-848-6115, 6640008486115, 008486115
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | JAN 01, 1963 | 00-848-6115 | 11090 ( GROUND JOINT, LABORATORY GLASSWARE ) |
REFERENCE DRAWINGS & PICTURES

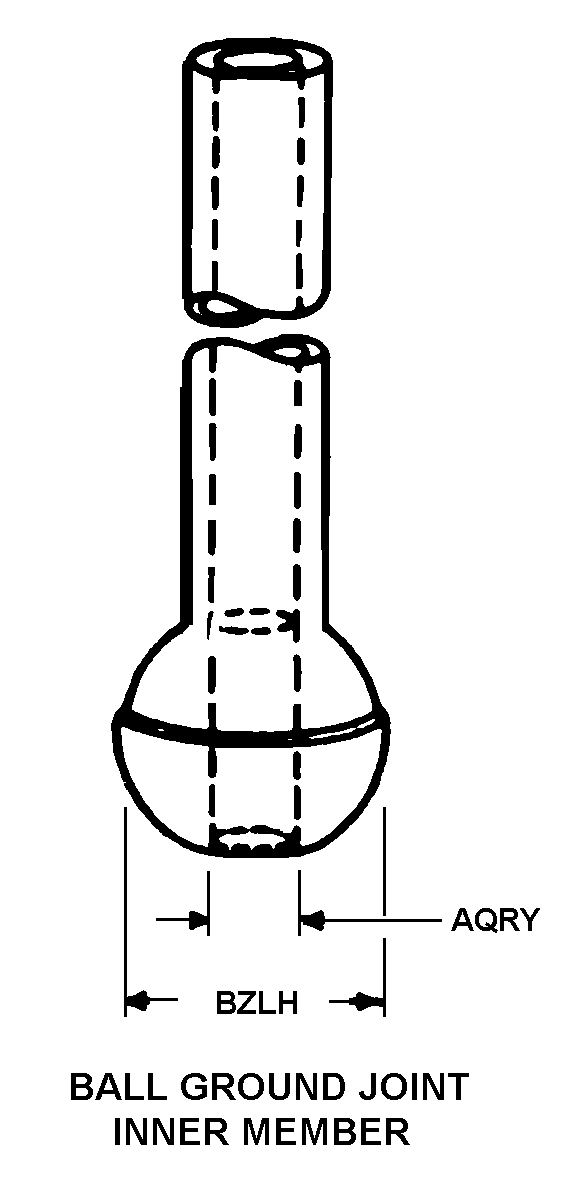

BALL GROUND JOINT INNER MEMBER
Cross Reference | NSN 6640-00-848-6115
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DDG675TYPE2C0MP0SITI0N1GRADEA | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 6640-00-848-6115
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BALL GROUND JOINT INNER MEMBER |
| TUBING INSIDE DIAMETER | 25.00 MILLIMETERS NOMINAL |
| BALL DIAMETER | 35.00 MILLIMETERS NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 1 COMPOSITION AND A GRADE |
