NSN 6640-00-379-2606

Part Details | DISTILLING FLASK

6640-00-379-2606 A vessel with one or more necks and/or a side tubulation usually used for hazardous distillations.

Alternate Parts: 4740, 26070125, 26070-125, 26070, 6640-00-379-2606, 00-379-2606, 6640003792606, 003792606

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
66JAN 01, 196300-379-260619426 ( FLASK, DISTILLING )

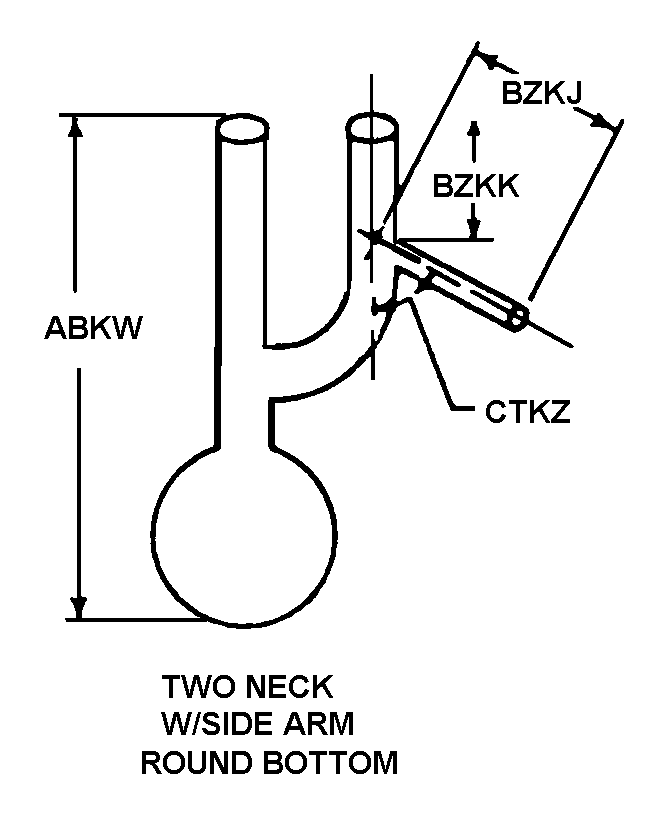

REFERENCE DRAWINGS & PICTURES

TWO NECK W/SIDE ARM ROUND BOTTOM

FLASK,DISTILLING | 6640-00-379-2606, 003792606
Cross Reference | NSN 6640-00-379-2606
Part Number Cage Code Manufacturer
474014674CORNING GLASS WORKS
26070-12584116OWENS-ILLINOIS INCLABORATORY SALES KIMBLE DIV
2607084116OWENS-ILLINOIS INCLABORATORY SALES KIMBLE DIV
Technical Data | NSN 6640-00-379-2606
Characteristic Specifications
STYLE DESIGNATOR TWO NECK W/SIDE ARM ROUND BOTTOM
OVERALL HEIGHT210.00 MILLIMETERS NOMINAL
SIDE ARM LENGTH97.00 MILLIMETERS MINIMUM AND 107.00 MILLIMETERS MAXIMUM
DISTANCE FROM TOP TO SIDE ARM CENTERLINE74.00 MILLIMETERS MINIMUM AND 80.00 MILLIMETERS MAXIMUM
ANGLE75.0 DEGREES
CAPACITY RATING125.000 MILLILITERS NOMINAL
PRIMARY CONTAINER TYPECX ANY ACCEPTABLE
PRIMARY CONTAINER UNIT QUANTITY1
TOTAL PRIMARY CONTAINER QUANTITY1
